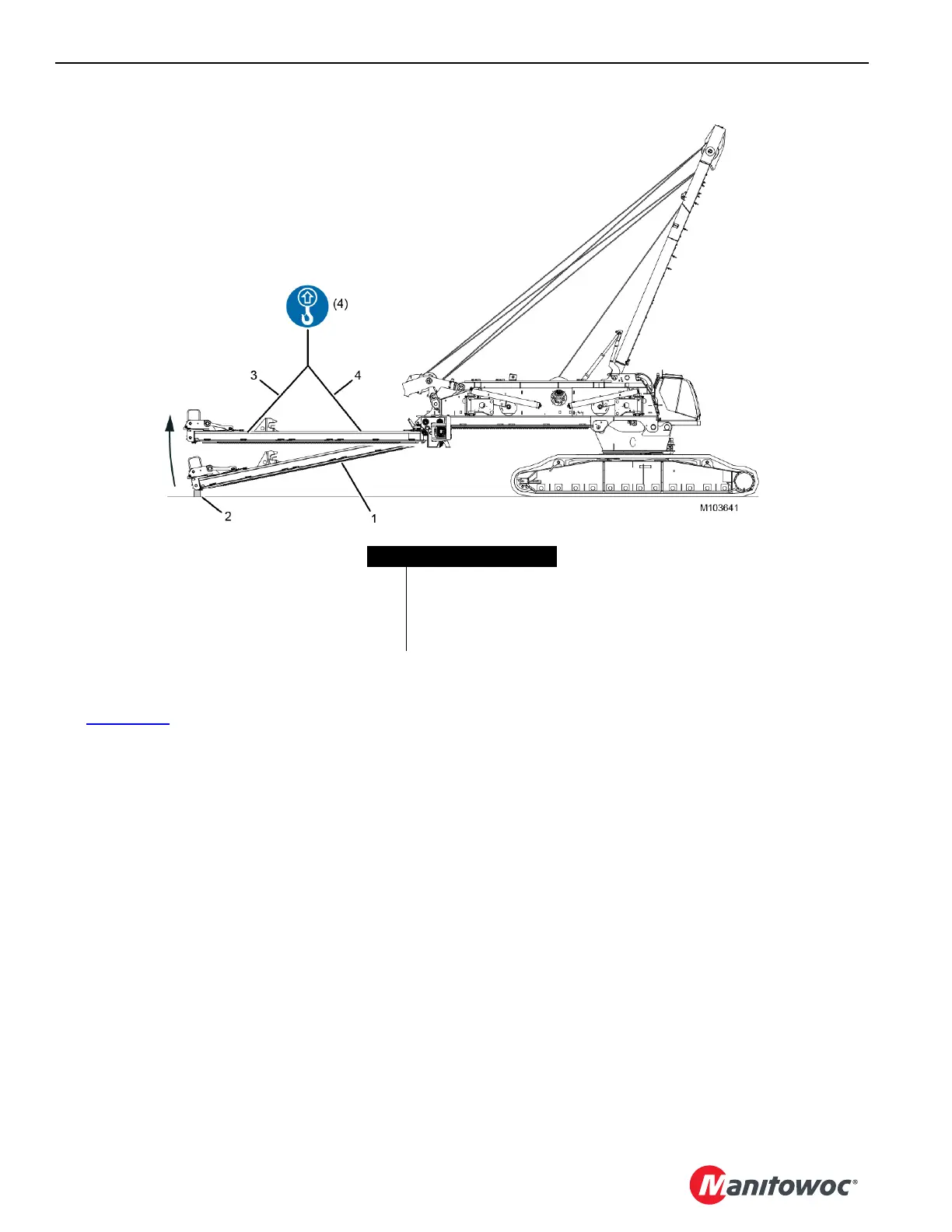

See Figure 4-113 for the following procedure.
7. Using the assist crane, lower the rear of the VPC-MAX
beam (1) onto the blocking (2).
8. Leave the rear pendants (3) attached to the rear lifting
lugs and detach the forward pendants (4) from the rear
pendants.
9. Attach the forward pendants to the front lifting lugs on
the beam.
FIGURE 4-113
Item Description
1 VPC-MAX Beam
2 Blocking
3 Rear Pendant (qty 2)
4 Forward Pendant (qty 2)
