Manitowoc Published 04-06-18, Control # 231-14 4-135
MLC650 VPC-MAXâ„¢ OPERATOR MANUAL SET-UP AND INSTALLATION
Disconnecting the Hydraulic Hoses
See Figure 4-114 for the following procedure.
1. Turn off the cab power and the remote control key.
2. Disconnect the hydraulic hoses (1–4) on the actuator
from the couplers (5–8) on the VPC-MAX
beam.
3. Install the hydraulic hoses in the stored position on the
actuator.
4. Using the assist crane, hoist slowly until the beam is
horizontal (see Figure 4-113
).

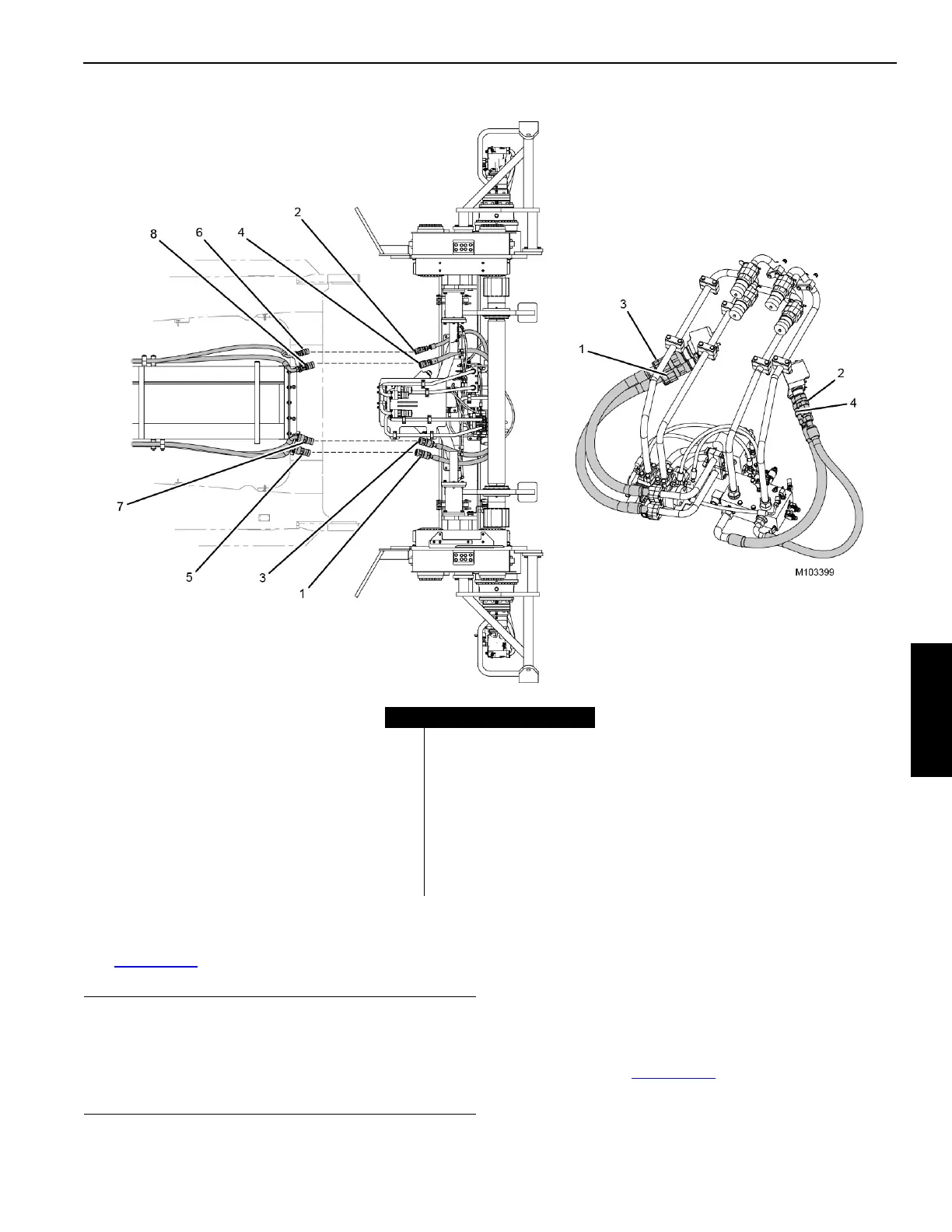

WORKING POSITION STORED POSITION
Item Description
1 Hydraulic Hose Number 31
2 Hydraulic Hose Number 32
3 Hydraulic Hose Number 33
4 Hydraulic Hose Number 34
5 Coupler Number 31
6 Coupler Number 32
7 Coupler Number 33
8 Coupler Number 34
FIGURE 4-114
CAUTION
Equipment Damage!
The actuator will damage components if it moves
unexpectedly.
Make sure to lock out the VPC-MAX actuator.
