SET-UP AND INSTALLATION MLC650 VPC-MAX™ OPERATOR MANUAL
4-136
Published 04-06-18, Control # 231-14
Disconnecting the Electrical Cables
See Figure 4-115 for the following procedure.
1. Disconnect electrical plug WVH1-J1 (6) on the actuator
from electrical plug WVB3-P1 (7) on the VPC-MAX
beam.
2. Disconnect electrical plug WVH1-J4 (4) on the actuator
from electrical plug WVB4-P1 (5) on the beam.
3. Disconnect CAN plug WVH1-J2 (2) on the actuator from
CAN plug WVB5-P1 (3) on the beam.
4. Remove the dust cap from the terminating resistor (1)
and install the resistor to CAN plug WVH1-J2 on the
actuator.
5. Install the dust caps to the plugs.

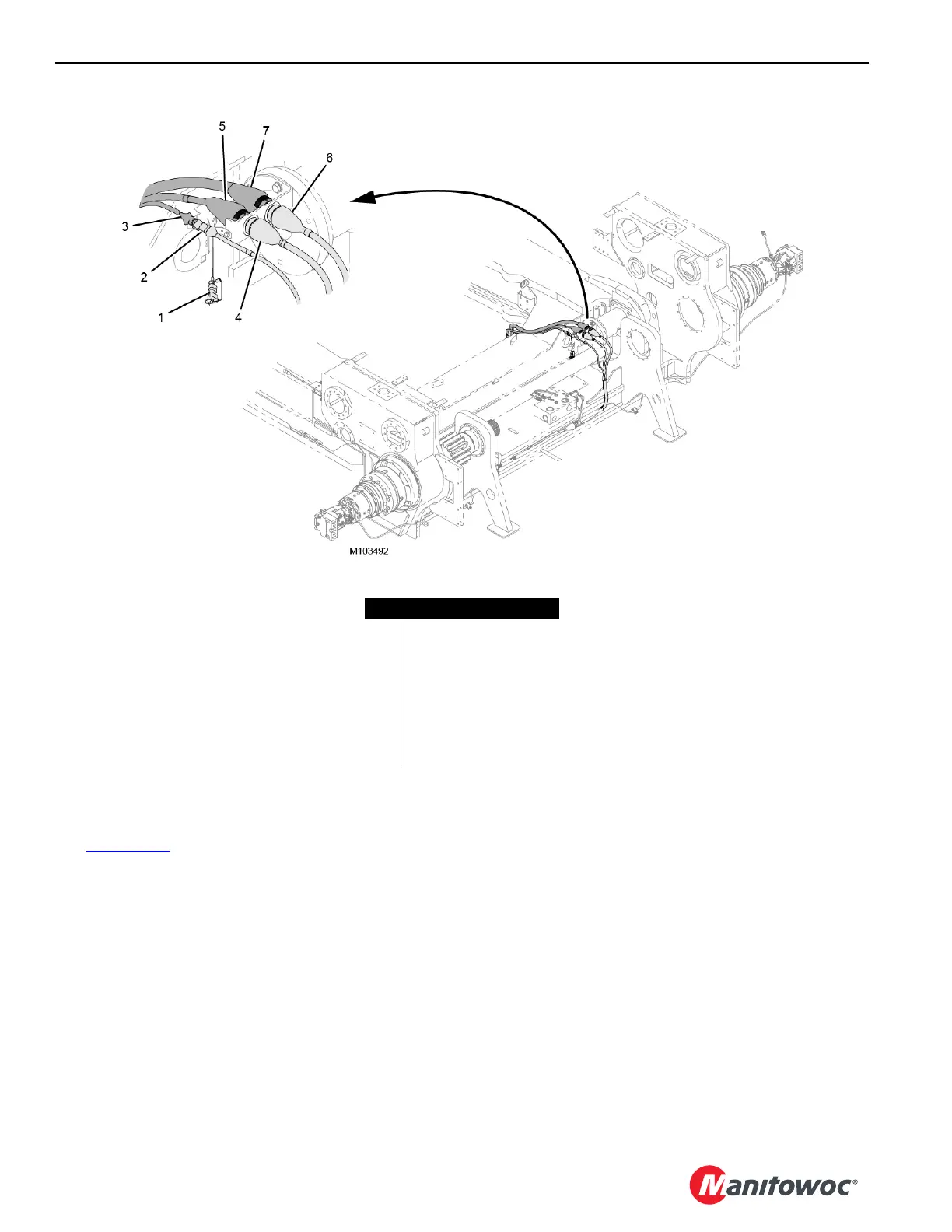

FIGURE 4-115
Item Description
1 Terminating Resistor
2CAN Plug WVH1-J2
3 CAN Plug WVB5-P1
4 Electrical Plug WVH1-J4
5 Electrical Plug WVB4-P1
6 Electrical Plug WVH1-J1
7 Electrical Plug WVB3-P1
