Manitowoc Published 04-06-18, Control # 231-14 4-143
MLC650 VPC-MAX™ OPERATOR MANUAL SET-UP AND INSTALLATION
Disconnecting the Electrical Cables
See Figure 4-120 for the following procedure.
1. Disconnect electrical plug WVB2 (5) on the rotating bed
from electrical plug WVH1-P2 (6) on the actuator.
2. Remove the dust cap from the terminating resistor (4)
and connect the resistor to electrical plug WVB2.
3. Disconnect electrical plug WVB1 (2) on the rotating bed
from electrical plug WVH1-P1 (3) on the actuator.
4. Install the dust cap (1) to electrical plug WVB1.

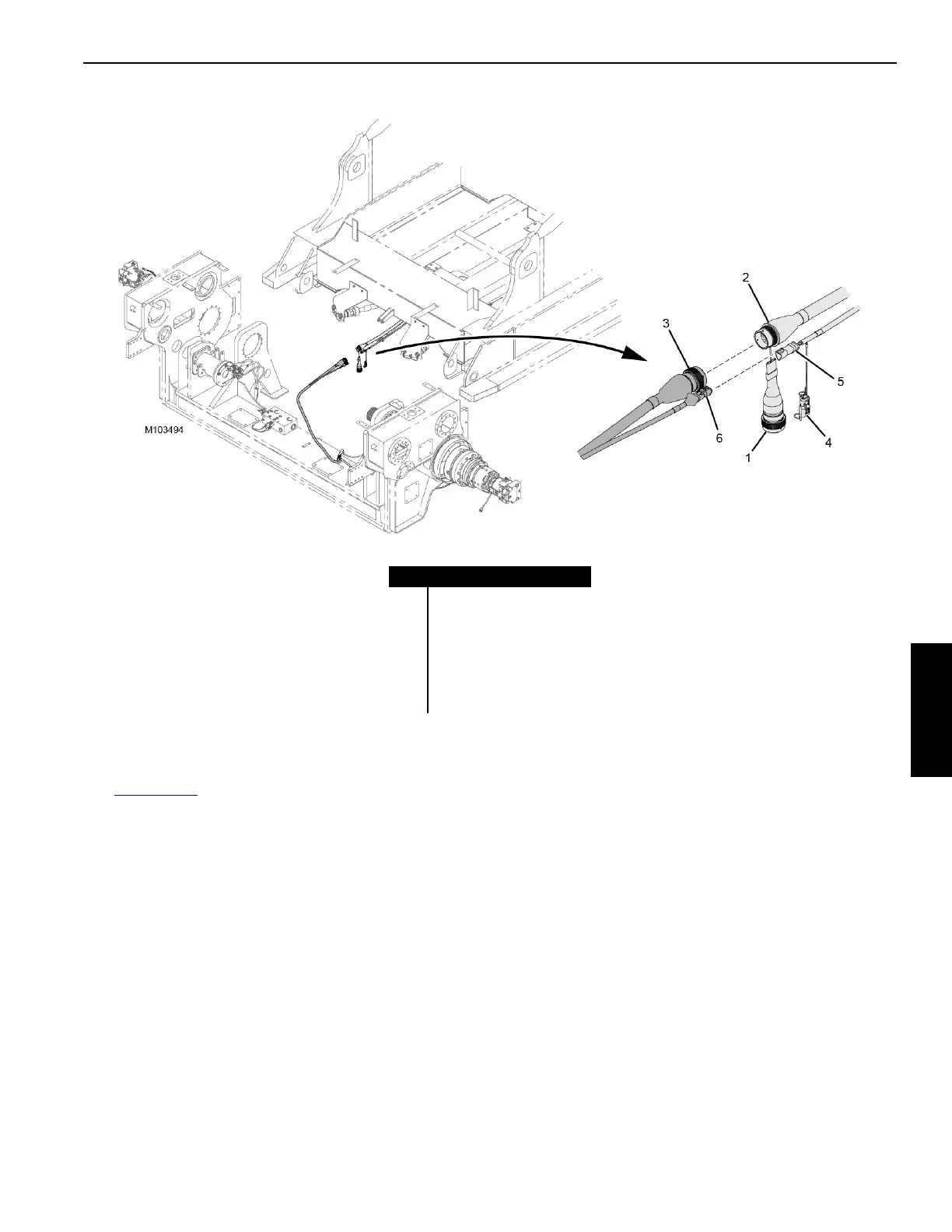

FIGURE 4-120
Item Description
1Dust Cap
2 Electrical Plug WVB1
3 Electrical Plug WVH1-P1
4 Terminating Resistor
5 Electrical Plug WVB2
6 Electrical Plug WVH1-P2
