SET-UP AND INSTALLATION MLC650 VPC-MAXâ„¢ OPERATOR MANUAL
4-144
Published 04-06-18, Control # 231-14
Disconnecting the Hydraulic Hoses

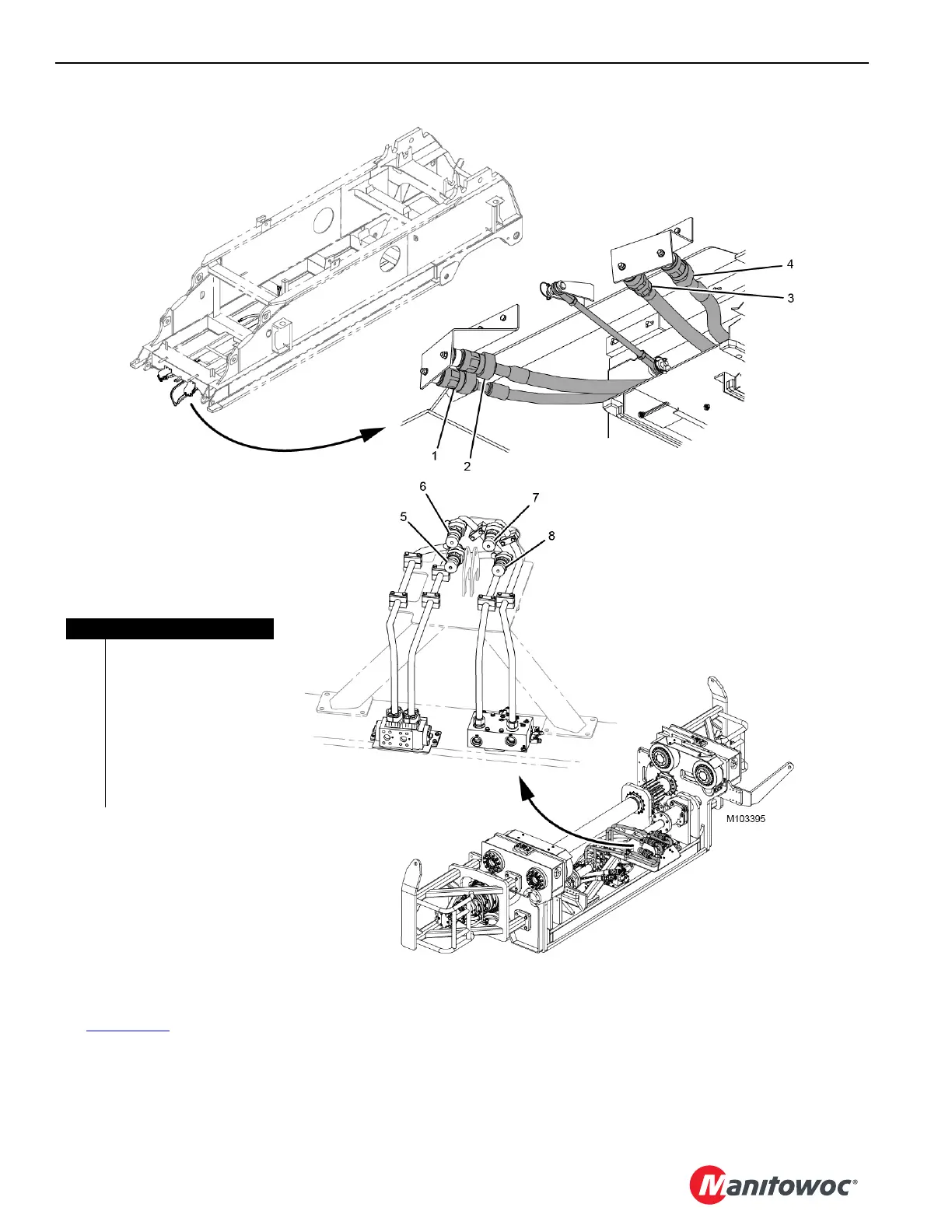

See Figure 4-121 for the following procedure.
1. Disconnect the hydraulic hoses (1–4) from the
couplers (5–8) on the actuator.
2. Install the hydraulic hoses in the stored position by
installing the hoses to the brackets.
Item Description
1 Hydraulic Hose Number 32
2 Hydraulic Hose Number 31
3 Hydraulic Hose Number 34
4 Hydraulic Hose Number 33
5 Coupler Number 33
6 Coupler Number 34
7 Coupler Number 32
8 Coupler Number 31
STORED POSITION
FIGURE 4-121
