Manitowoc Published 04-06-18, Control # 231-14 4-29
MLC650 VPC-MAXâ„¢ OPERATOR MANUAL SET-UP AND INSTALLATION
Connecting the Hydraulic Hoses
See Figure 4-28 for the following procedure.
1. Remove the hydraulic hoses (1–4) from the stored
position.
2. Connect the hydraulic hoses on the actuator to the
couplers (5–8) on the VPC-MAX
beam.
NOTE: The hoses and the corresponding couplers are
tagged with numbers. Match the numbers to
ensure proper hose connection.
Item Description
1 Hydraulic Hose Number 31
2 Hydraulic Hose Number 32
3 Hydraulic Hose Number 33
4 Hydraulic Hose Number 34
5 Coupler Number 31
6 Coupler Number 32
7 Coupler Number 33
8 Coupler Number 34

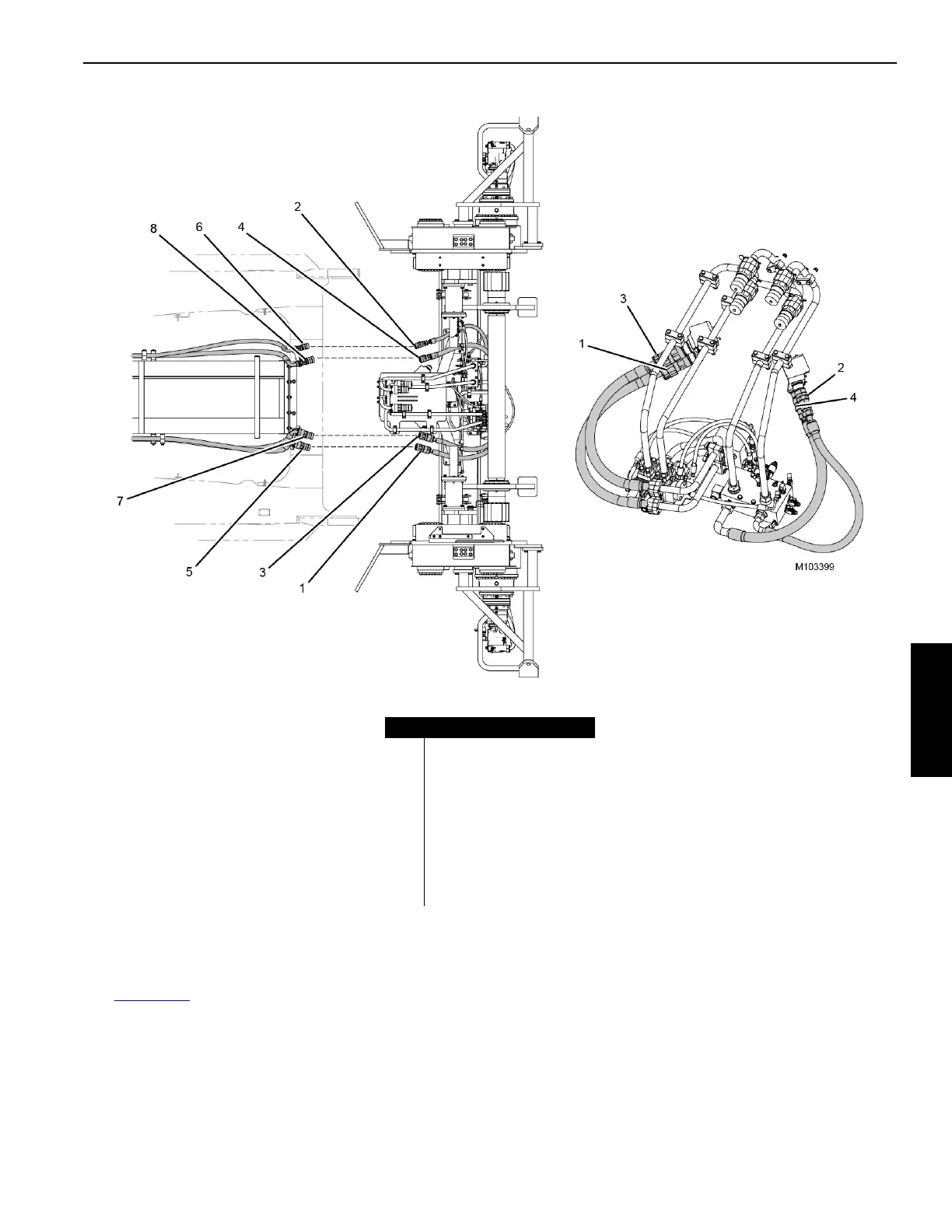

FIGURE 4-28
STORED POSITIONWORKING POSITION
