3.9 Installing a Third-Party Force Sensor
Before installing the sensor, refer to the Model PTA / PTAF user’s guide for complete
instructions.

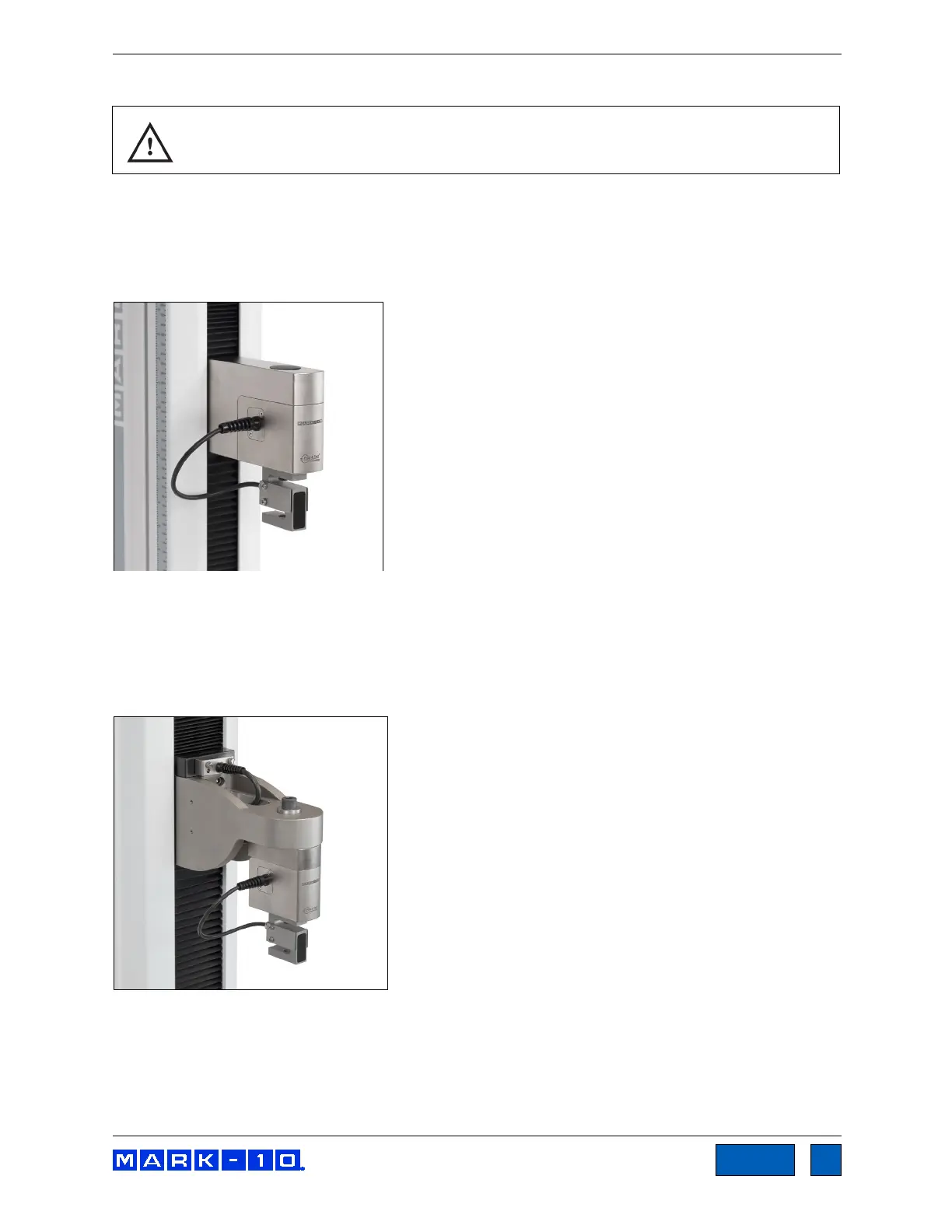

3.9.1 Models F105 / F305 / F505 / F505H
Using the optional Model PTAF adapter, a third-party force sensor may be mounted to the test frame.
Insert a screw of sufficient length and appropriate thread size through the crosshead, through the PTAF,
and into the force sensor, as shown in the following example:
3.9.2 Models F755 / F755S / F1505 / F1505S
Using the optional Model PTAF adapter and AC1083 adapter, a third-party force sensor cell may be
mounted to the test frame. Insert a screw of sufficient length and appropriate thread size through the
crosshead, through the AC1083 adapter, through the PTAF, and into the force sensor, as shown in the
following example:
