Series F Test Frames + IntelliMESUR
®
Software User’s Guide
27
TOC 
7.1 Load and Distance Measurement

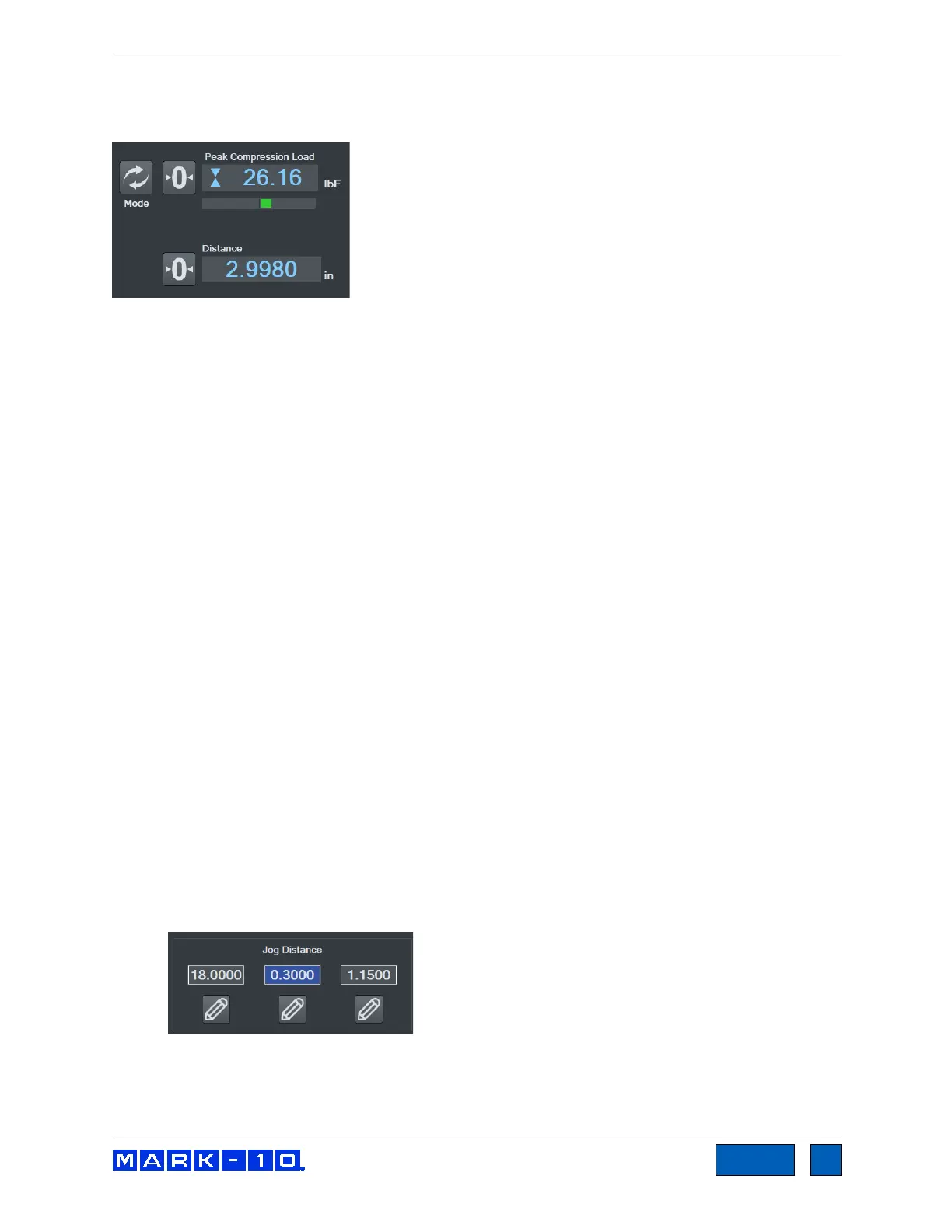

Load and distance measurement are displayed as below:
Load
Load is displayed in the unit of measurement selected in Default Settings. Use the Mode button to
toggle between three display modes:
Load
The real-time load.
Peak Compression Load
Maximum observed compression load.
Peak Tension Load
Maximum observed tension load.
The load bar below the load reading indicates when approaching an overload. The bar increases
to the right for compression readings, and to the left for tension readings. The bar colors are as
follows:
Green 0 - 80% of force sensor capacity
Yellow 80 to 100% of force sensor capacity
Red 100+% of force sensor capacity
At 110% of force sensor capacity, the load reading is replaced by the word, “OVER”, which
indicates an overload. The status window background color turns red.
Load Zero zeroes the live load and clears the peaks.
Distance Zero zeroes the distance.
7.2 Motion Control Modes
Jog Mode
The crosshead moves the specified distance each time Up or Down is selected. Three pre-sets
are available, as shown below:
Select the desired preset. Select Edit to change the jog distance for the corresponding preset.
