Series F Test Frames + IntelliMESUR
®
Software User’s Guide

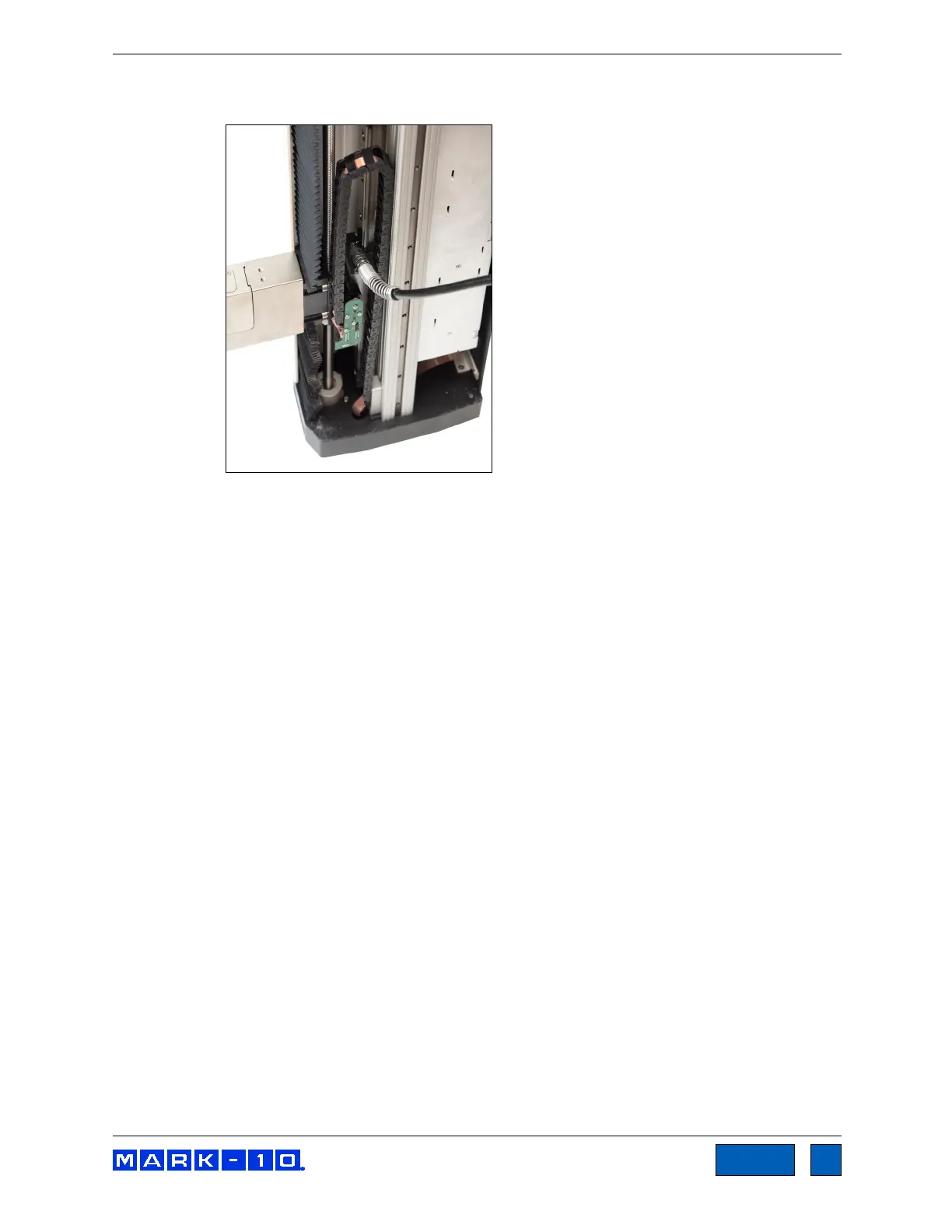

6. Using a grease gun, add general purpose bearing grease to the inside of the slider until full. Wipe
clean any spillage. Refer to the image below:
7. Cycle the crosshead up and down several times until the newly applied grease has been spread
evenly over the length of the slide.
8. Re-assemble by repeating steps 1 through 4 in reverse.
12.1.3 Check for loosened grips and attachments – daily
Check to ensure that the grips attached to the force sensor and base plate are firmly secured. Looseness
could result in a potentially hazardous situation.
12.1.4 Check for loosened components – once per month
1. Remove the test sample from the test frame.
2. Attempt to loosen subcomponents of the test frame (ex. fasteners, brackets, etc.). All components
should be firmly attached. If any looseness is detected, stop using the test frame and contact
Mark-10 or a distributor for instructions.
