13.1.2 Slider lubrication
As with the ball screw, periodic lubrication of the slider improves performance and increases the longevity
of test frame components. Frequency depends on environmental conditions and usage.
Follow these instructions for proper slider lubrication:
1. Lay the test frame on its side on a flat and secure working surface. Exercise caution while doing
so, as the test frame is heavy.
2. Remove the upper and lower bellows to expose the slider, as per the instructions above.

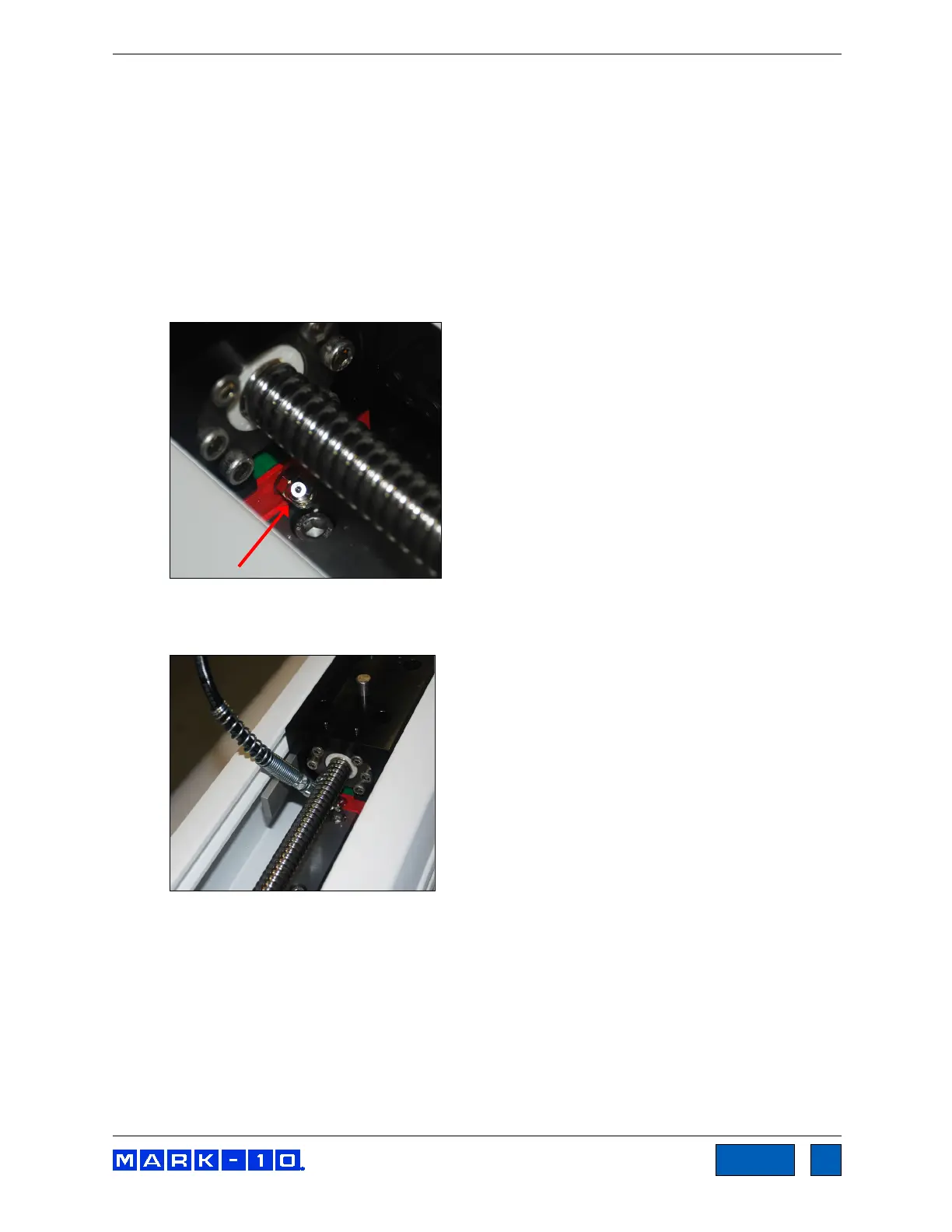

3. Locate the grease receptacle on the slider, identified in the below image:
4. Using a grease gun, add general purpose bearing grease to the inside of the slider until full. Wipe
clean any spillage. Refer to the image below:
5. Cycle the crosshead up and down several times until the newly applied grease has been spread
evenly over the length of the slide.
6. Re-install the bellows.
13.1.3 Check for loosened grips and attachments – daily
Check to ensure that the grips attached to the force sensor and base plate are firmly secured. Looseness
could result in a potentially hazardous situation.
