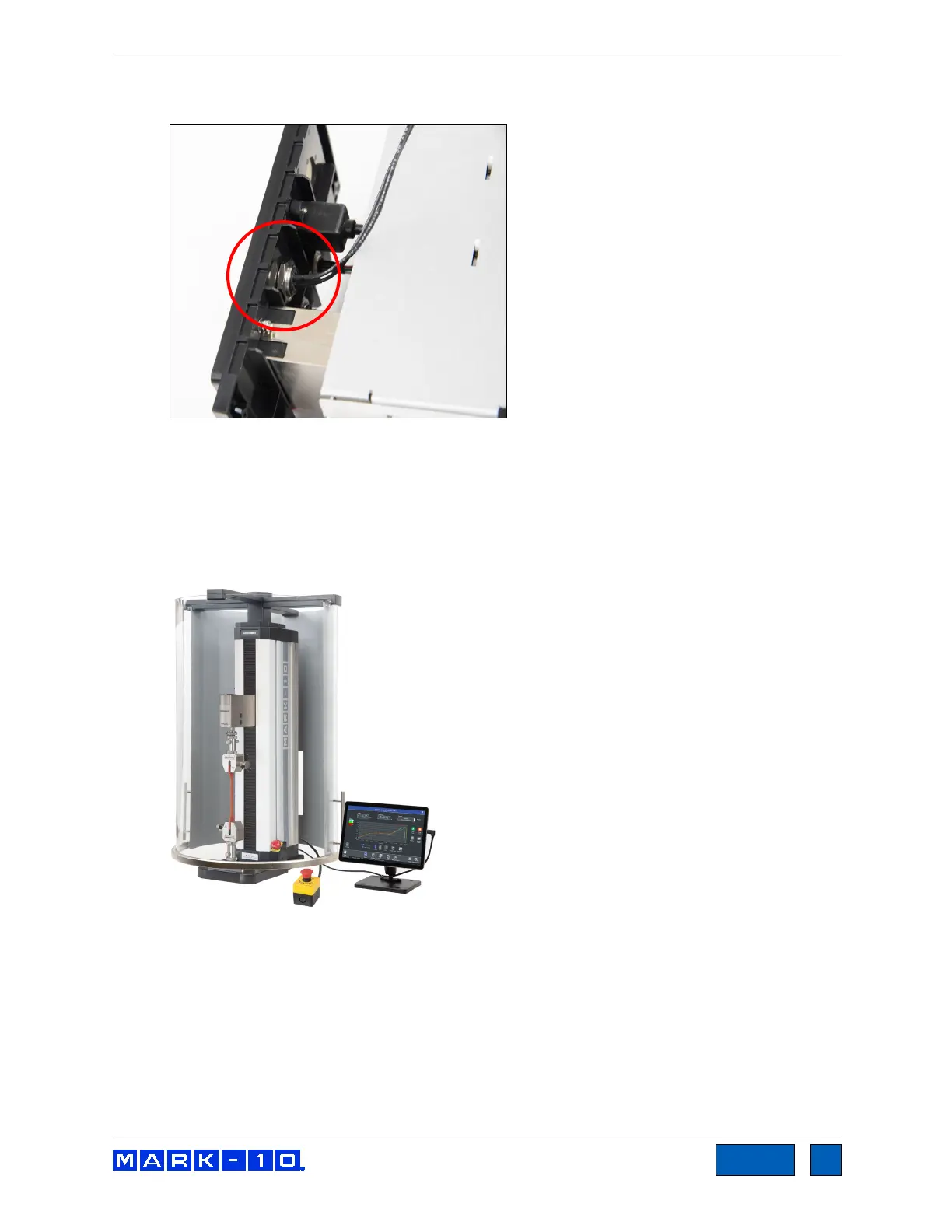

6. Install the connector to the housing by inserting the spacer over the body of the connector, then
tightening the nut, as shown below:
7. Reassemble the MDU and reinstall, as instructed in earlier sections.
8. Connect the cable from the remote emergency stop switch.
14.1.2 Installing the Shield – Model AC1086 for Models F105 / F305 / F505
1. The safety shield is shipped fully assembled. Remove it from the box and remove the packaging.
When assembled to the test frame it appears as follows:
2. Position the mounting bracket on top of the test frame column, aligning the thru holes with the
corresponding threaded holes at the top of the column. Fasten the six provided socket head
screws, as shown below:
