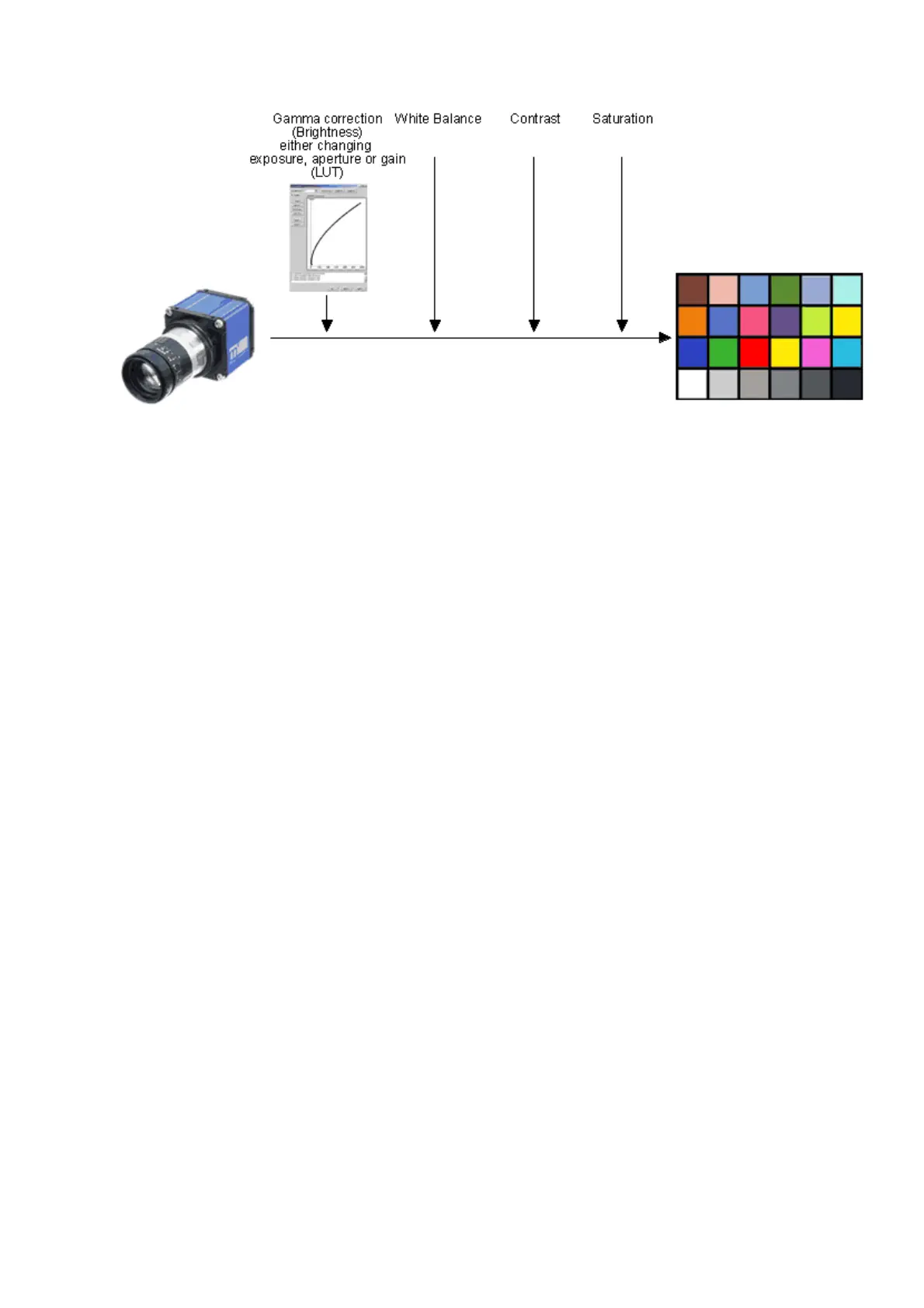

Figure 4: The way to a perfect colored image
including these process steps:
Do a Gamma correction (Brightness),1.
make a White balance and2.
Improve the Contrast.3.
Improve Saturation, and use a "color correction matrix" for both
the sensor and / or1.
the monitor.2.
4.
The following sections will describe the single steps in detail.
18.3.2.1 Step 1: Gamma correction (Brightness)
First of all, a Gamma correction (Brightness) can be performed to change the image in a way how
humans perceive light and color.
For this, you can change either
the exposure time,1.
the aperture or2.
the gain.3.
You can change the gain via wxPropView like the following way:
Click on "Setting -> Base -> Camera -> GenICam -> LUT Control -> LUT Selector".1.
Afterwards, click on "Wizard" to start the LUT Control wizard tool.
The wizard will load the data from the camera.
2.
