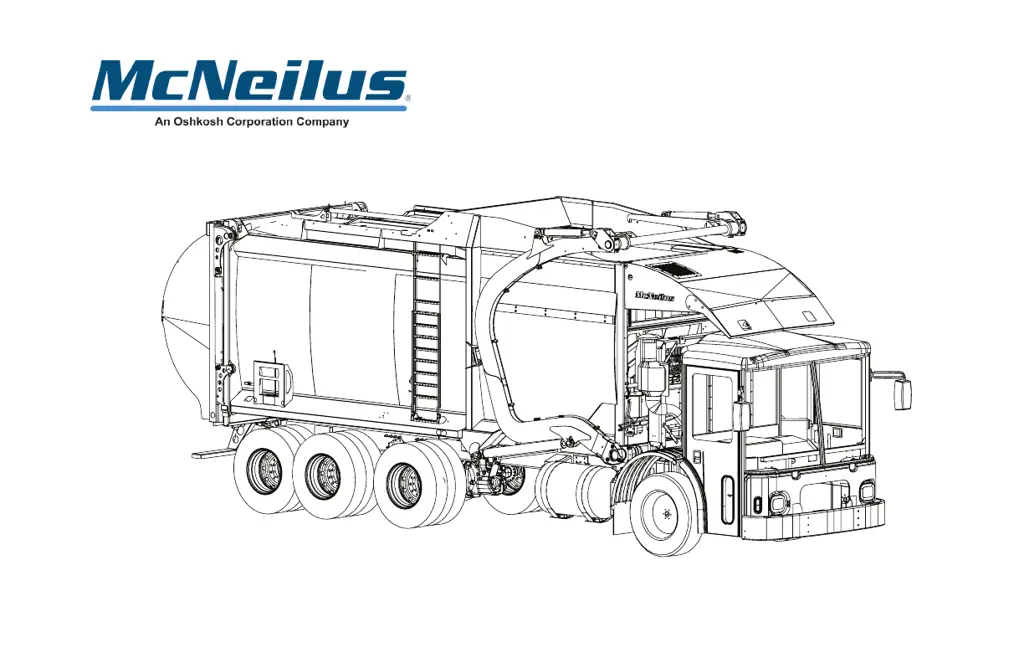

OPERATOR’S MANUAL

Contender Front Loader

© 2013 McNeilus Truck and Manufacturing, Inc.

Publication No. 1474268

Rev. 0918

Table of Contents

Questions and Answers:

H
Heather SmithAug 2, 2025
What to do if all functions are not working on my McNeilus Contender Front End Loaders?
- T
  Thomas OdomAug 2, 2025
  If all functions on your McNeilus Front End Loaders are not working, check the following: 1. Ensure the BATTERY switch is ON. 2. Ensure the IGNITION switch is ON. 3. Make sure all E-STOP buttons are released. 4. Verify the PUMP switch is ON. 5. Confirm the side door is CLOSED. 6. Wait for the chassis air system to build pressure above 80 psi if the system air pressure is too low. 7. If the problem persists, it may require shop service and repair.
C
Crystal CaseAug 7, 2025
Why is the joystick function not working on my McNeilus Contender?
- J
  Jordan CannonAug 7, 2025
  The joystick function might not work on your McNeilus Front End Loaders due to several reasons: 1. The engine rpm is too HIGH. Reduce engine speed to below 1600 rpm. 2. The pack/eject is not in HOME position. Manually retract pack/eject to the HOME position. 3. The top door is not fully OPEN. Fully open the top door. 4. The system air pressure is too LOW. Wait for the chassis air system to build pressure above 80 psi. 5. If none of these solve the issue, there may be a system problem requiring shop service and repair.
T
Timothy YoderAug 12, 2025
How to troubleshoot automatic pack/eject functions not working on McNeilus Contender Front End Loaders?
- C
  Cory ShawAug 12, 2025
  If the automatic pack/eject functions are not working on your McNeilus Front End Loaders, consider these potential causes: 1. The engine rpm is too HIGH. Reduce engine speed to below 1600 rpm. 2. The tailgate is OPEN. Close the tailgate. 3. The top door is not fully OPEN. Fully open the top door. 4. The arms are ABOVE the body. Lower arms below the body. 5. If the issue remains, the pack/eject proximity switches may need checking, or there might be a system problem, both requiring shop service and repair.
C
Connor RodriguezAug 17, 2025
What to do if manual pack/eject functions are not working on McNeilus Contender Front End Loaders?
- M
  Michael GrantAug 17, 2025
  If the manual pack/eject functions are not working on your McNeilus Front End Loaders, check the following: 1. Ensure the engine rpm is not too HIGH. Reduce engine speed to below 1600 rpm. 2. Confirm that the top door is fully OPEN. 3. Verify that the arms are not ABOVE the body; if they are, lower them below the body. 4. If the problem persists, it may indicate a system problem requiring shop service and repair.

McNeilus Contender Specifications

General

Brand	McNeilus
Model	Contender
Category	Front End Loaders
Language	English

Summary

Safety

1.0 Important Safety Information

Crucial safety instructions and warnings for operating the equipment.

1.1 Battery Disconnect Switch

Procedure for using the battery disconnect switch for maintenance.

3.0 Product Safety Information

General product safety guidelines and warnings.

3.2 Cab Operation

Safety precautions related to operating the vehicle's cab.

3.3 Maintenance

Safety considerations during maintenance procedures.

3.4 Outside Operation

Safety guidelines for operating the vehicle outdoors.

3.5 Hydraulics

Safety precautions for hydraulic systems.

3.6 Electrical

Safety precautions for electrical systems.

Operation

1.1 Start-Up Procedure

Steps to follow before starting the vehicle.

1.2 Warm-Up Procedure

Procedure for warming up the hydraulic circuits.

1.5 Preparation Before Starting Route

Steps for preparing the vehicle before starting a route.

1.6 Neutral Interlock Test Procedure for Optional Neutral Interlock

Testing the neutral interlock system for safety.

1.7 Refuse Loading Procedure

Step-by-step guide for loading refuse.

1.8 Refuse Empty Procedure

Instructions for emptying the refuse from the vehicle.

1.9 End of Day Checks

Daily checklist to perform at the end of the day.

2.2.1 Refuse Vehicle Button Functions

Explanation of button functions on the control box.

2.2.2 LED Indicator Light Functions

Meaning of LED indicator lights on the control panel.

2.3 Arm and Fork Controls

Controls for operating the arm and fork assemblies.

2.3.2 Single Lever Joystick Control

Operation of the single lever joystick for arm/fork control.

2.3.3 Single Lever Joystick Control (Optional)

Operation of optional single lever joystick controls.

2.3.4 Dual Lever Controls (Optional)

Operation of optional dual lever controls.

2.3.5 Auto Dump Single Lever

Operation of the auto dump single lever control.

2.4 Outside Control Box (Optional)

Operation of the optional outside control box.

3.1 E-STOP (Emergency Stop) Function

How to use the Emergency Stop function.

3.2 Pack/Eject Functions

Explanation of the Pack/Eject functions.

3.2.1 Automatic Cycling of Pack/Eject

Procedure for automatic Pack/Eject cycling.

3.2.2 Manual Cycling of Pack/Eject

Procedure for manual Pack/Eject cycling.

3.2.3 Manual Cycling with Tailgate Open

Manual Pack/Eject cycling with the tailgate open.

3.3 Arm Functions

How to operate the arm functions.

3.4 Fork Functions

3.5 Auto Dump Functions (Optional)

3.6 Tailgate Functions

3.6.1 Open Tailgate

3.6.2 Close Tailgate

3.7 Top Door Functions

3.7.1 Open Top Door

3.7.2 Close Top Door

4.4.1 Water Tank Safety

4.4.7.2 Pressurizing the Water Tank

4.4.7.3 Depressurizing the Water Tank

4.4.7.4 Draining the Water Tank

Preventive Maintenance

1.1 DOT Pre-Trip

3.0 Daily Preventive Maintenance Checks

3.1 Hydraulic System

3.1.1 Hydraulic Oil Level

4.0 Propping the Tailgate

4.7.1 Engaging the Standard Tailgate Prop

4.7.3 Engaging the Hinge Design Tailgate Prop

5.1 Procedure for the Manual Canopy Lift Design

5.2 Procedure for the Pneumatic Canopy Lift Design

6.1 Daily Lubrication

6.2 Scheduled PM Lubrication

Troubleshooting

1.1 Onboard Diagnostics

1.2 Troubleshooting Chart

A chart detailing problems, causes, and actions.
