2.4 Outside Control Box (Optional)
The Arm, Fork, Pack/Eject, Throttle Advance, and E-STOP
Functions can be operated from the outside control box
(Figure 23). The REMOTE button on the in-dash control panel
must be ON to enable the outside controls.
No. Description Normal Use or Reading
1
AUTO PACK/EJECT
Switch
Press and hold the switch up
to activate automatic cycling of
Pack/Eject Function.
2
THROTTLE
ADVANCE Switch
Press and hold the switch up to
increase chassis engine RPM.
3
FORK Control
Switch
Press and hold the switch to the
left to raise fork assembly.
Press and hold the switch to the
right to lower fork assembly.
4 ARM Control Switch
Press and hold the switch to the
left to raise arm assembly.
Press and hold the switch to the
right to lower arm assembly.
5 E-STOP Button
Disables all hydraulic,
pneumatic, electric functions.
6
Operator Presence
Button
Press and hold the button when
using any of the outside control
switches.

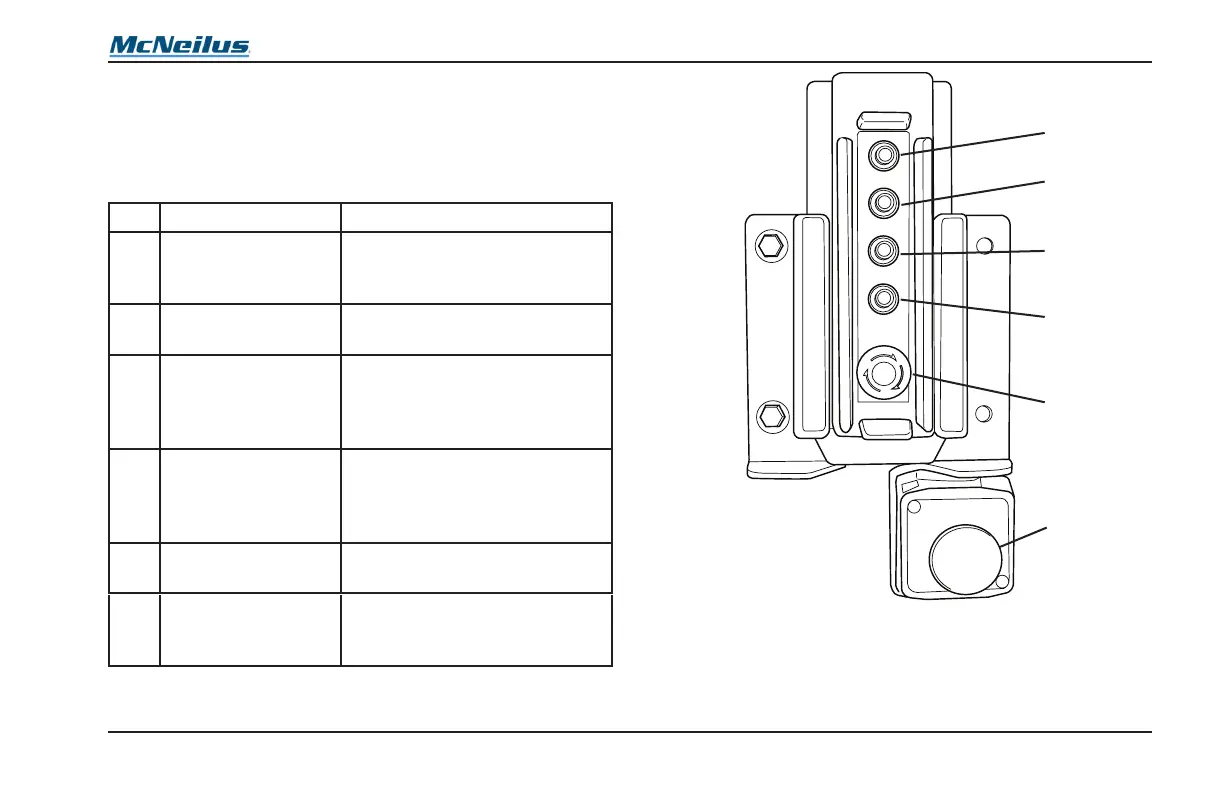

Figure 23
1
2
3
4
5
6
