Contender Front Loader
Operation
4.0 Optional Equipment
4.1 Residential Attachments
The residential application for a front loader requires the use
of a carry can. The carry can is mounted and secured to the
fork assembly. When the carry can is equipped with a cart
tipper or automatic arm, the required hydraulic and electrical
lines are routed down the curb side arm assembly with the
connections (Figure 33) mounted on the fork assembly.
The routing of hydraulic and electrical lines from the
connections to the carry can will vary with different models
and manufacturers of carry cans.

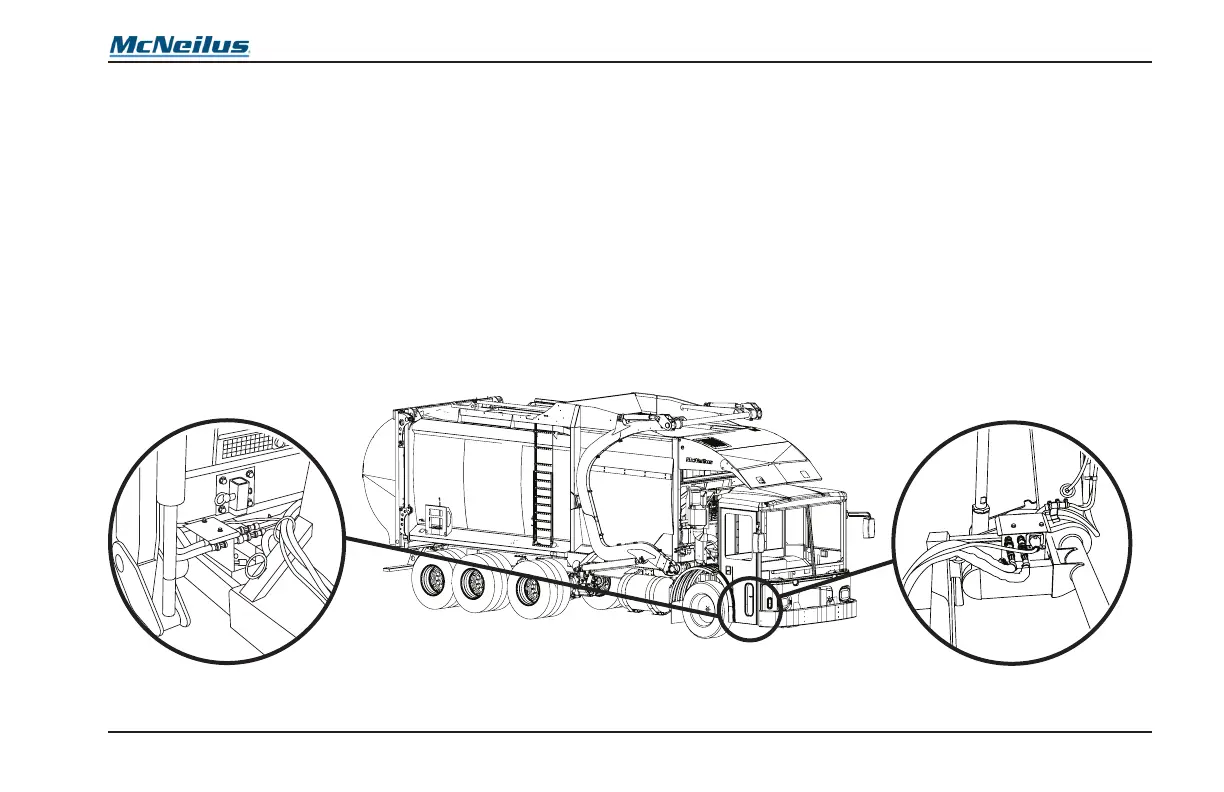

Figure 33
