Contender Front Loader
General Information
1.3 S-Type Container Specications
Only lift containers that are compatible with ANSI Z245.6-
2008, type S containers. Check to make sure the container
meets the dimensional requirements before lifting (Figure 3).
No. Description Specication
1
Width of the fork receiver area at
the inside surface of the outboard
pocket walls.
Min: 79 in.
Max: 80 in.
2
Width at the top of the container,
including all lids, hinges and hinge
rods.
Max: 78 in.
3
Width of the fork receiver area at
the inside surface inboard pocket
wall, including bump plates.
Max: 73-1/2 in.
4
Height of the pocket between the
inside surfaces of the top and
bottom wall.
Min. 4 in.
5
Extension of the bump plates below
the inside surface of the bottom
pocket wall.
Min: 25 in.
6
Height of the pocket above ground
at the inside surface of the top wall.
Min: 25 in.
7
Height from inside top pocket wall
to the top leading edge of the
container, over all lids and hinges.
Max: 48 in.

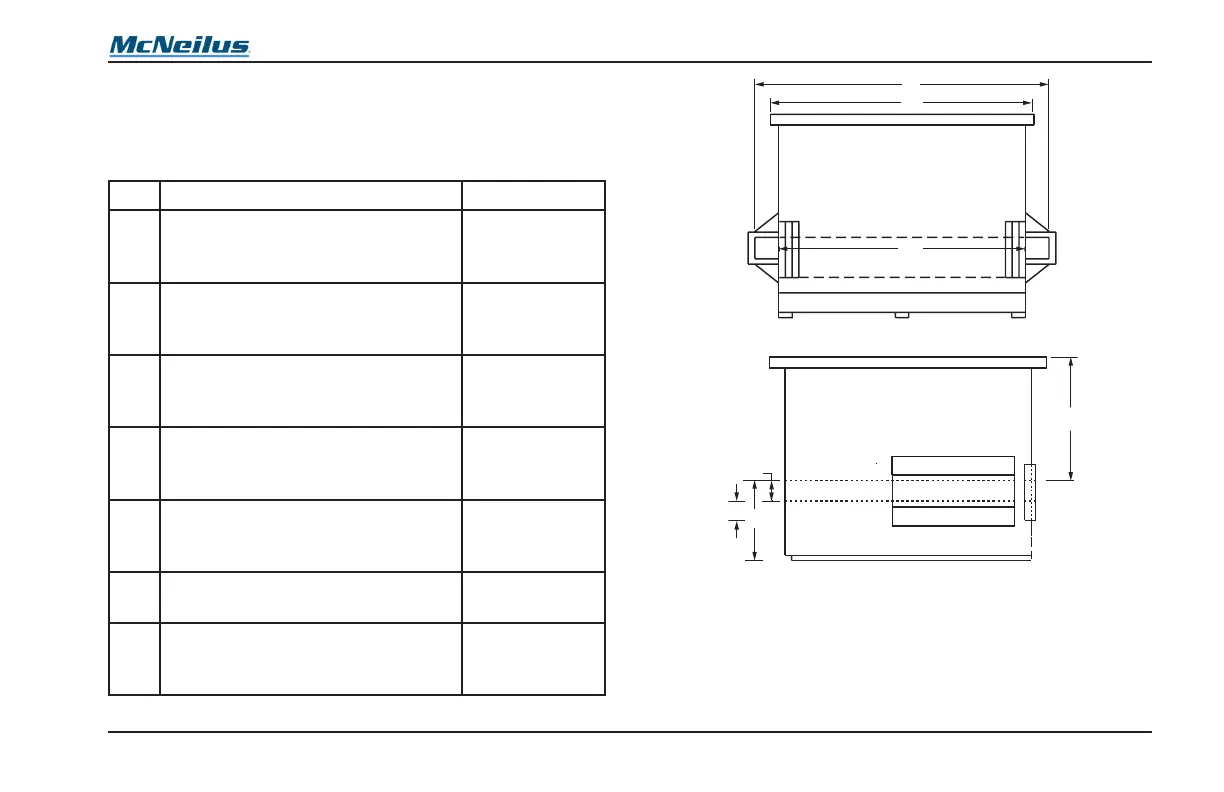

Figure 3
1
2
3
7
5
4
6
