2.3.4 Dual Lever Controls (Optional)
NOTE
The INSIDE lever of the dual controls always
controls the arm function. It does not
matter whether it is mounted on the curbside
or the streetside.
The INSIDE lever is always closest to the
operator.
The Dual Lever controls consist of two separate levers. One
lever controls the movement of the arm assembly. The other
lever controls the movement of the fork assembly.
The control levers are spring loaded and will automatically
return to the middle (neutral) position when released.
Move the Street Side/Curb Side switch to the position the
controls will be operated from.
Pull the corresponding control lever BACK (Figure 21, Item 1)
to raise the arm assembly.
Push the corresponding control lever FORWARD (Figure 21,
Item 2) to lower the arm assembly.
Push the corresponding control lever FORWARD (Figure 21,
Item 3) to lower the fork assembly.
Pull the corresponding control lever BACK (Figure 21, Item 4)
to raise the fork assembly.

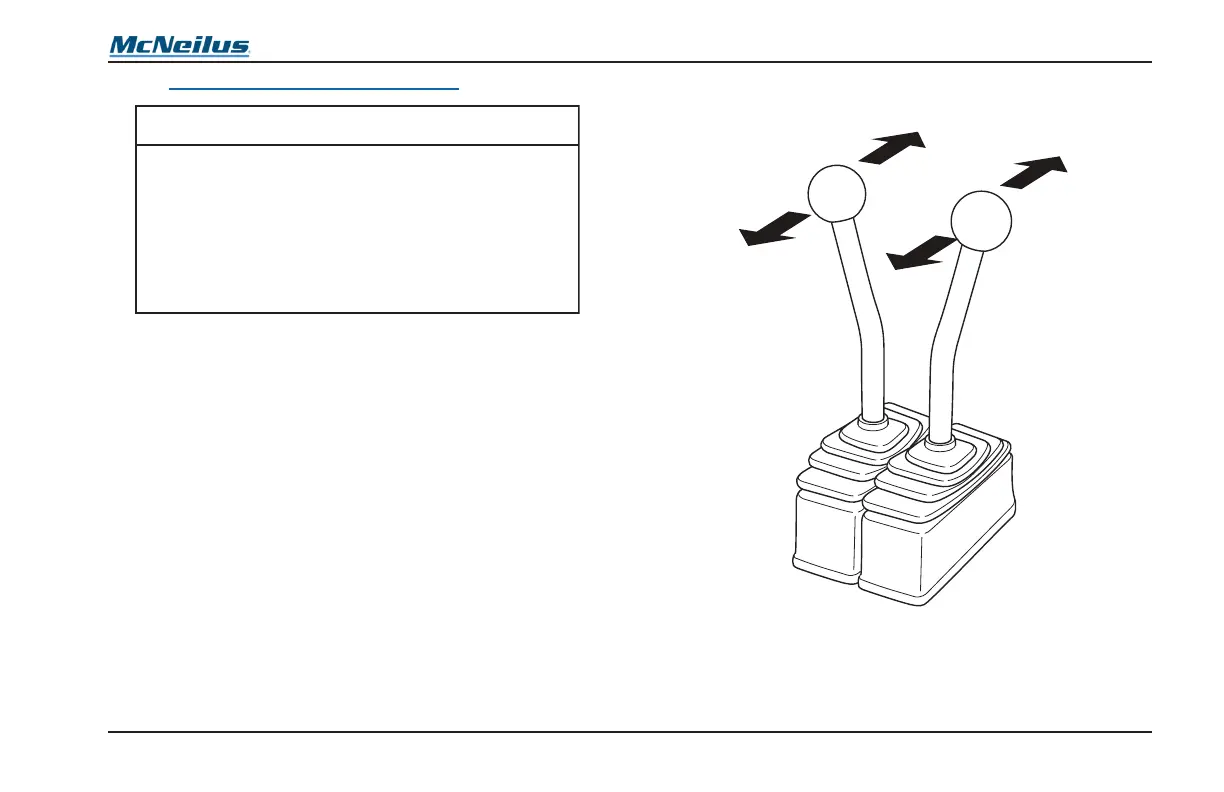

Figure 21
Figure represents view from street Side in chassis cab.
