McNeilus Contender - Control Box

41
© 2013 McNeilus Truck and Manufacturing, Inc.
Contender Front Loader
Operation
2.2 Control Box
The in-cab control box contains the E-STOP (emergency
stop) button (Figure 13, Item 1), buttons for the refuse vehicle
functions, lights, pump, and options (Figure 13, Item 2), and a
red LED warning light (Figure 13, Item 3).
No. Position Normal Use or Reading
1 E-STOP
Button
Disables all hydraulic and electric
refuse vehicle functions.
2 Switches and
LED Lights
Controls refuse vehicle functions,
lights and options, and displays error
codes and status of operations.
3 Red LED
Warning Light
If light is on or ashing, it indicates
an unsafe condition. Look at the LED
lights on the control box to determine
what the unsafe condition is. Under
normal operating conditions, the light
will be off.

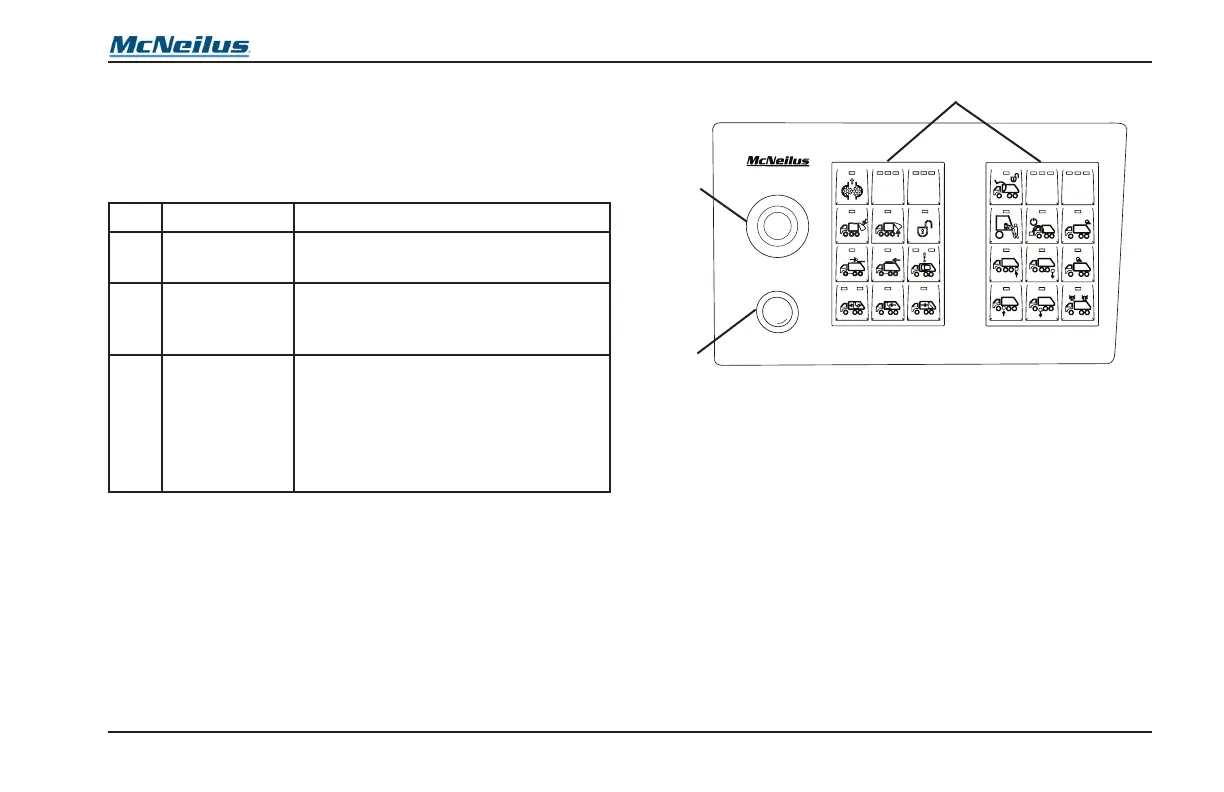

Figure 13
S
T
O
P
WARNING
E
M
E
R
G
E
N
C
Y
