Contender Front Loader
Operation
3.3 Arm Functions
The Arm Functions are controlled from the chassis cab or
outside control box.
Be sure all non-operator personnel are at
least 20 feet (6 meters) away from all areas
of the Packer.
Serious personal injury or death may occur.
WARNING
Make sure the area above the vehicle is
clear of objects and power lines before
raising the arm.
Serious personal injury or death may occur.
DANGER
CAUTION
Use caution when raising the arm assembly
with a container.
Conditions
• Side door indicator light must be off
• Top Door OPEN indicator light must be green
• Pack/Eject RETRACT indicator light must be green
• Engine speed must be below 1600 rpm

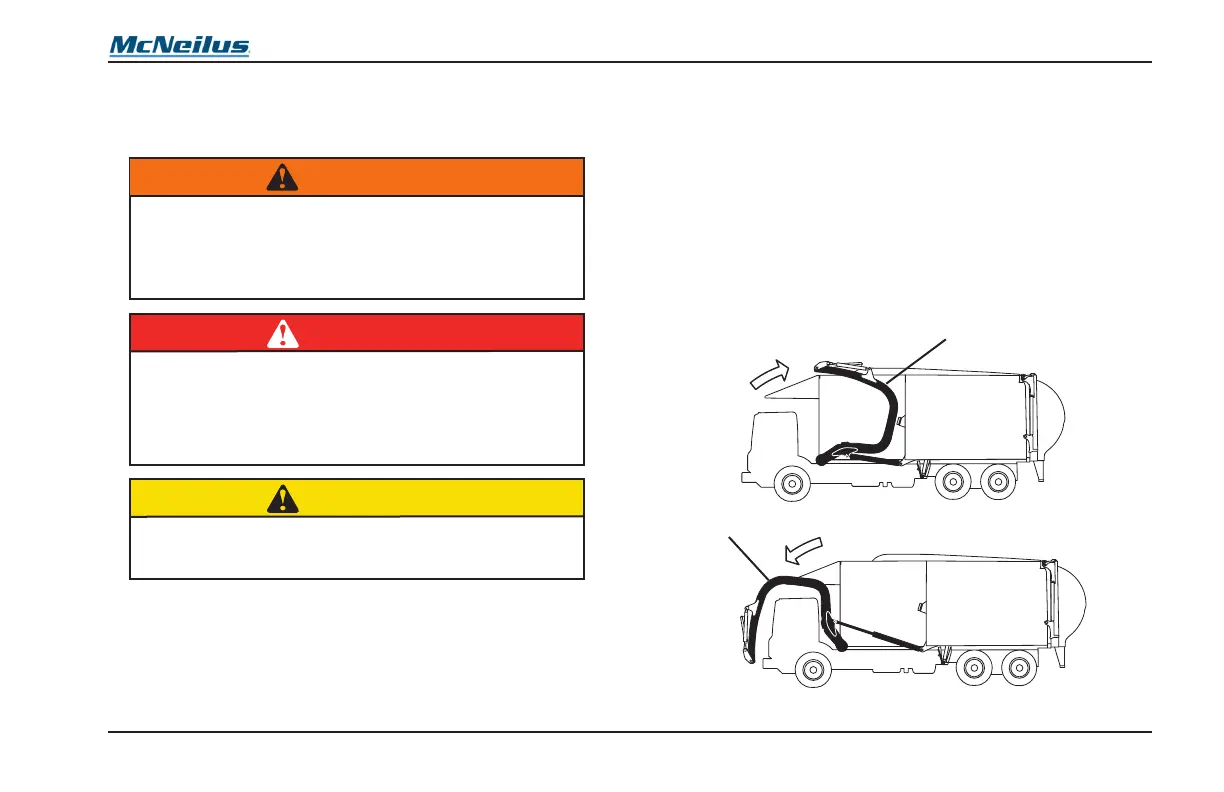

Use the arm controls to raise the arm assembly (Figure 28,
Item 1).
Use the arm controls to lower the arm assembly (Figure 28,
Item 2).
1
2
Figure 28
