2.2.3 Fuse Block
The fuse block protects the in-dash controls from an
overloaded condition. The fuse block is located on the refuse

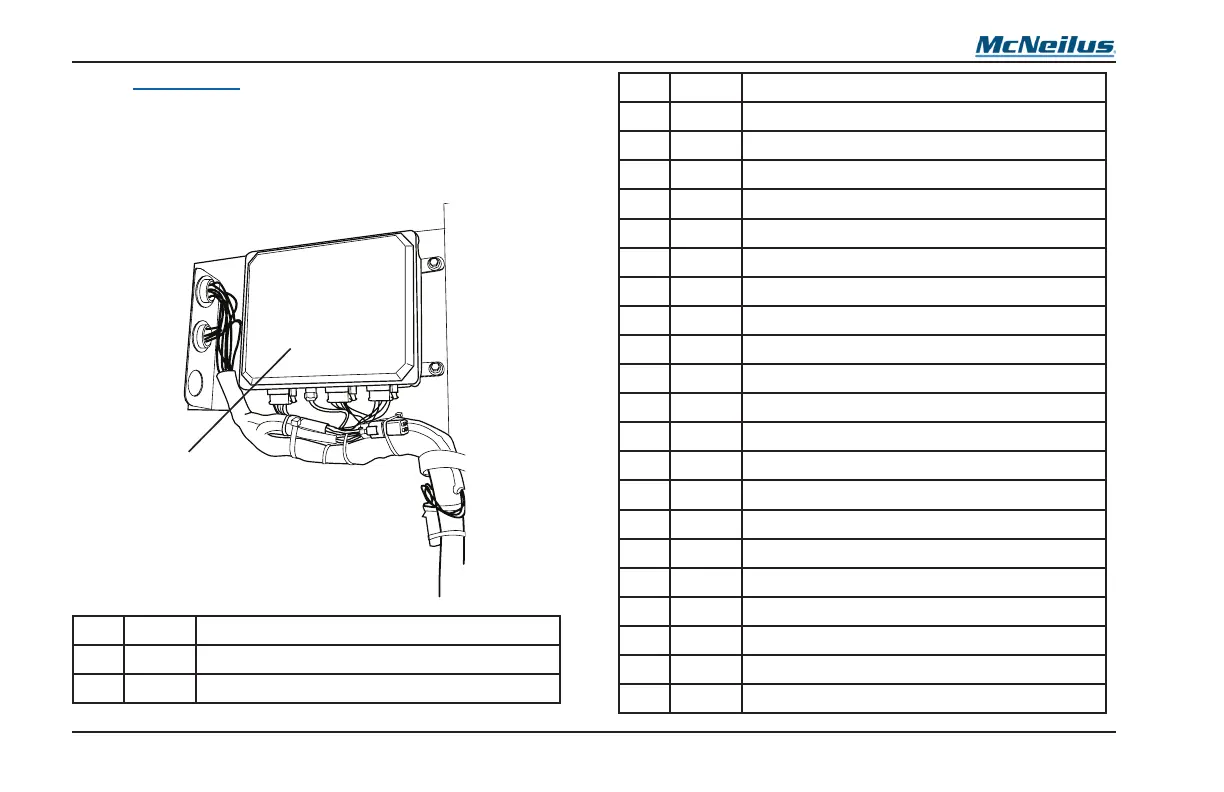

vehicle behind the cab. Open the cover (Figure 16, Item 1) to
gain access to the fuses (Figure 17).
1
Figure 16
No. Amp Description
1 5 Proximity Switch Power Fuse
2 15 Front Lights Fuse
No. Amp Description
3 5 Control Power
4 10 Tag Axle/Reverse Alarm Fuse
5 5 Pusher Axle Fuse
6 10 3G Power Auxiliary Power Fuse
7 5 Module Power Fuse
8 15 Strobe Light Fuse
9 15 Rear Lights Fuse
10 Spare
11 10 Hydraulic Controls Fuse
12 E-STOP Power Relay
13 10 Hydraulic 1 Fuse
14 5 Top Door Fuse
15 5 Hydraulic 2 Fuse
16 Spare
17 Front Work Lights Relay
18 Rear Work Lights Relay
19 Strobe Lights Relay
20 Spare Relay
21 Ignition Relay 1
22 3 Module Memory Fuse
23 Ignition Relay 2
