Contender Front Loader
Operation
4.4.7.3 Depressurizing the Water Tank

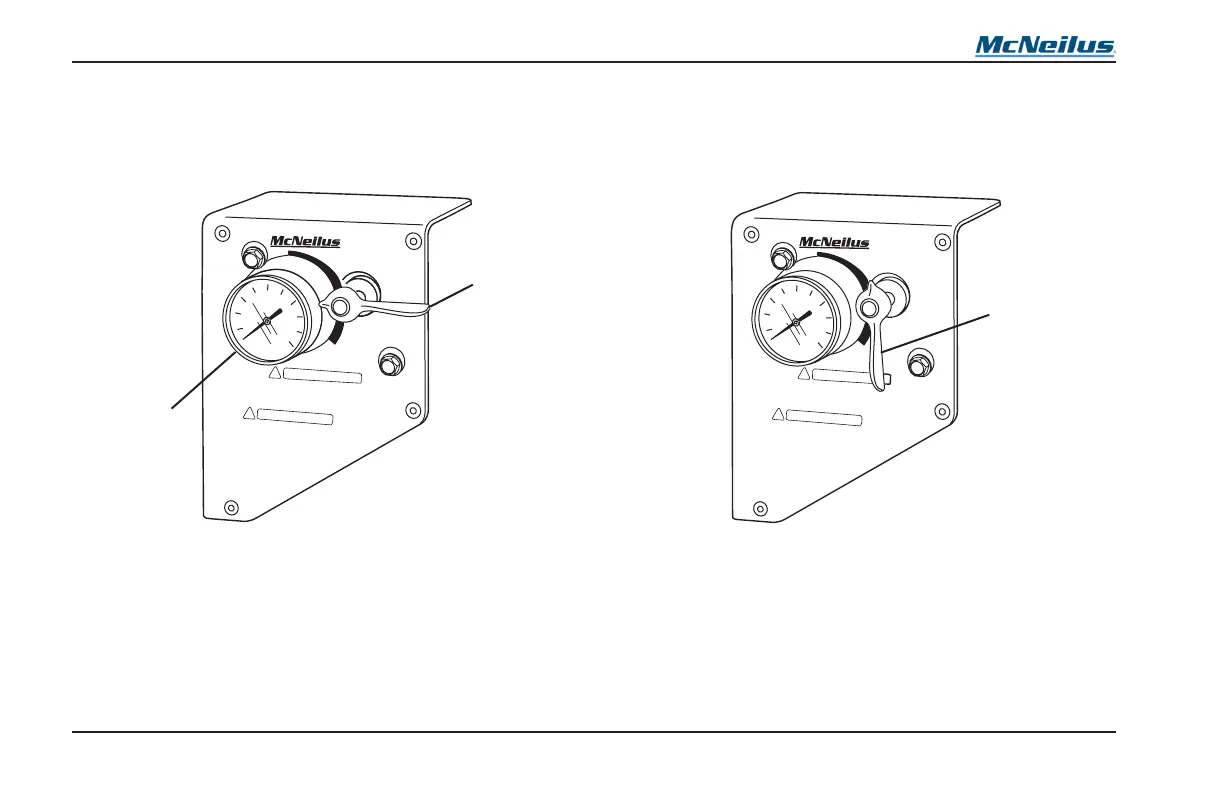

1. Turn air pressure control valve to the EXHAUST position
(Figure 39, Item 1). Make sure the gauges (Figure 39,
Item 2) read 0 psi.
PRESSUR
IZE
EXHAUST
P
RES
SURE
W
AT
ER
SYSTEM
OFF
WAR
N
IN
ADV ERTENCIA
2
0
0
4
0
6
0
80
10
0
!
!
G
EXHAU
ST
2
1
Figure 39
2. After pressure in the water tank has been completely
exhausted, turn the air pressure control valve to the OFF
position (Figure 40, Item 1).
PRESSURI
ZE
EXHAUST
PRESSURE
WATER SYSTEM
OFF
WARNIN
ADVERTENCIA
20
0
40
60
80
100
!
!
1
Figure 40
