Contender Front Loader
Operation
2.3 Arm and Fork Controls
There are three types of controls for the Arm and Fork
Functions. There are two types of single lever joysticks
available that enable the single joystick to operate both the
Arm and Fork Functions. The second type of control is the
dual lever in which one lever controls the Arm Functions and
the other lever controls the Fork Functions.
Be sure all non-operator personnel are at
least 20 feet (6 meters) away from all areas
of the Packer.
Serious personal injury or death may occur.
WARNING
Make sure the area above the vehicle is
clear of objects and power lines before
raising the arm.
Serious personal injury or death may occur.
DANGER
CAUTION
Use caution when raising the arm assembly
with a container.
2.3.1 Street Side/Curb Side Switch
When you have more than one joystick which can be operated
from the Street Side or the Curb Side of the cab, the switch
must be moved to the correct position.
When the toggle switch (Figure 18, Item 1) is in the middle, it
is in the OFF position (Figure 18, Item 2). The joysticks will not
function in the OFF position.
Move the toggle switch (Figure 18, Item 1) to the Street Side
Joystick position (Figure 10, Item 3) for Street Side Joystick
operation.
Move the toggle switch (Figure 18, Item 1) to the Curb Side
Joystick position (Figure 18, Item 4) for Curb Side Joystick
operation.

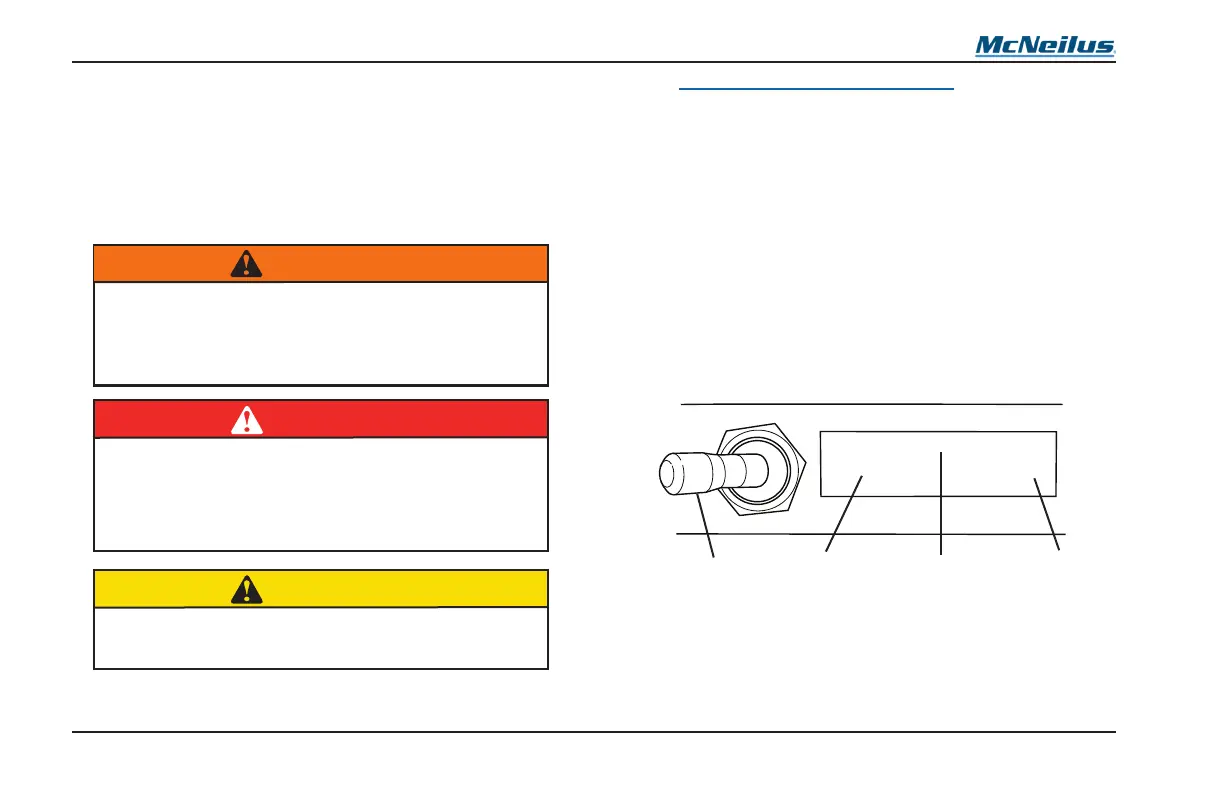

Figure 18
OFF
1226671
Streetside
Joystick
Curbside
Joystick
1
2
3
4
