Contender Front Loader
Operation
2.3.2 Single Lever Joystick Control
The single lever joystick (Figure 19) controls the movement of
both the arm and fork assemblies.
The joystick is spring loaded and will automatically return to
the middle (neutral) position when released.
Move the STREET SIDE/CURB SIDE switch to the position
the controls will be operated from. (See Street Side/Curb Side
Switch.)
Pull the joystick BACK (Figure 19, Item 1) to raise the arm
assembly.
Push the joystick FORWARD (Figure 19, Item 2) to lower the
arm assembly.
Push the joystick AWAY from the operator (Figure 19, Item 3)
to lower the fork assembly.
Pull the joystick TOWARD the operator (Figure 19, Item 4) to
raise the fork assembly.

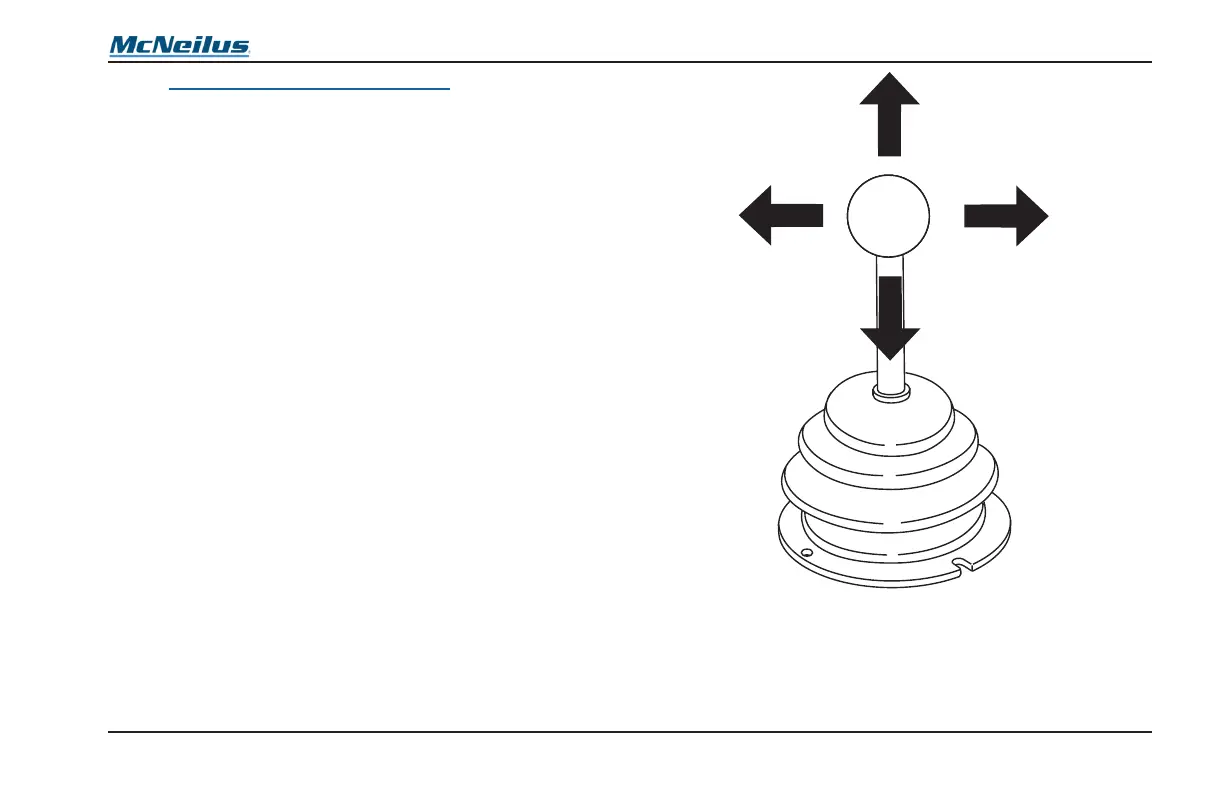

Figure 19
Figure represents view from street side in chassis cab.
2
3
1
4
