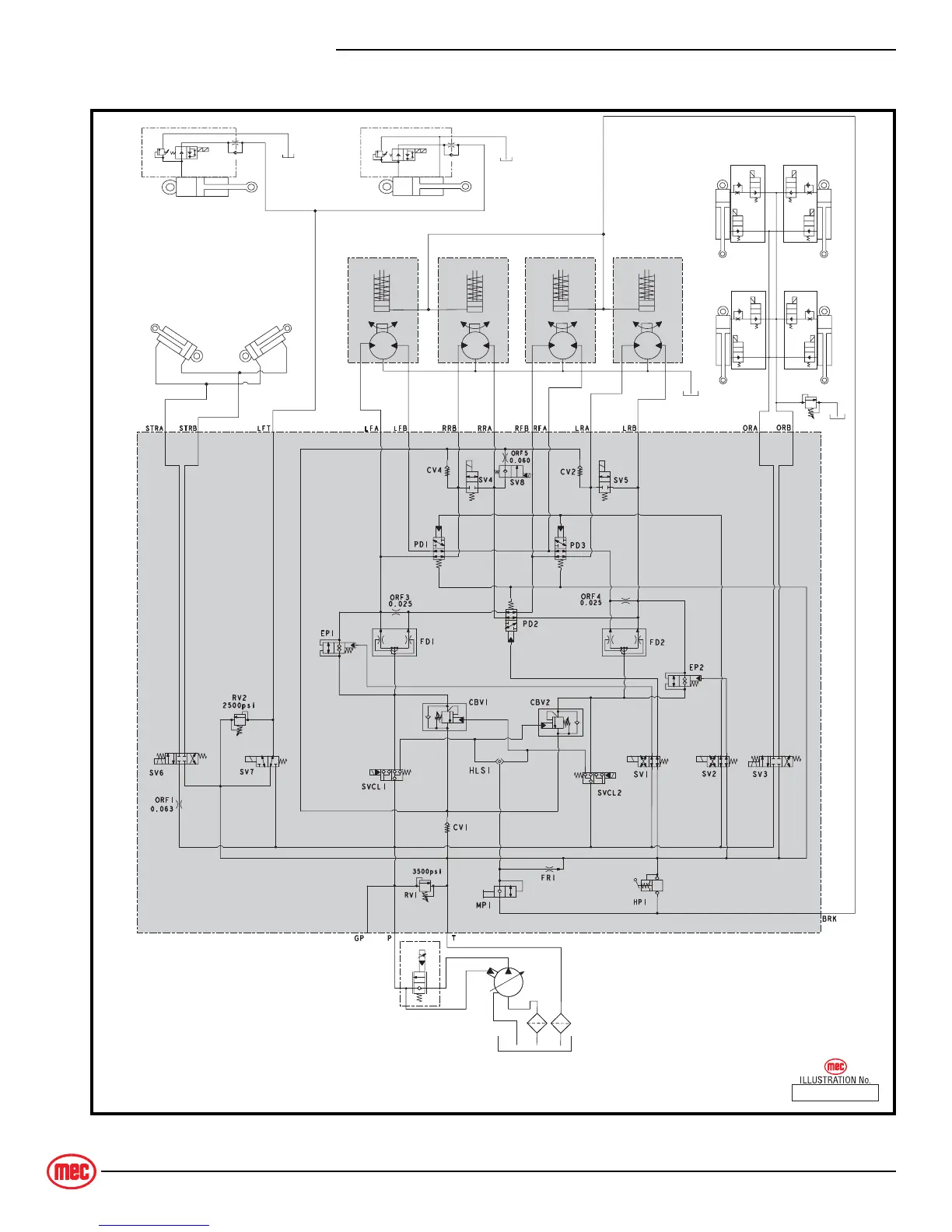

HYDRAULIC SCHEMATIC -
H YDRAULIC S CHEMATIC
Figure 5-1: Hydraulic Schematic
ART_4467
Hydraulic Schematic
4069 RT
RIGHT SIDE
STEER CYLINDER
LEFT SIDE
STEER CYLINDER
LEFT FRONT
WHEEL MOTOR/BRAKE
RIGHT REAR
WHEEL MOTOR/BRAKE
RIGHT FRONT
WHEEL MOTOR/BRAKE
LEFT REAR
WHEEL MOTOR/BRAKE
ø.047
LOWER
LIFT CYLINDER
UPPER
LIFT CYLINDER
ø.073
LF
RR
LR
RF
A B
A
B
AB
A
B
SV10
SV12
SV11
SV13
SV14
SV16
SV15
SV17
SV18
SV9
OUTRIGGERS
RV3
2500 PSI
P1
SP
SP1
CYL1
CYL1
CYL2
CYL2
CYL3
CYL3
CYL4
CYL4
CYL8
CYL8
CYL6
CYL6
CYL7
CYL7
CYL5
CYL5
MRR
MRR
MLF
MLF
MRF
MRF
MLR
MLR
