Mec 4069RT - Steering Circuit

“4069RT” Service and Parts Manual March 2014
Page 1-19
SYSTEM DESCRIPTIONS
S TEERING C IRCUIT
Pressurized fluid is supplied to the Steer Cylinders from Ports STRA and STRB on the
Functions Manifold as shown below.

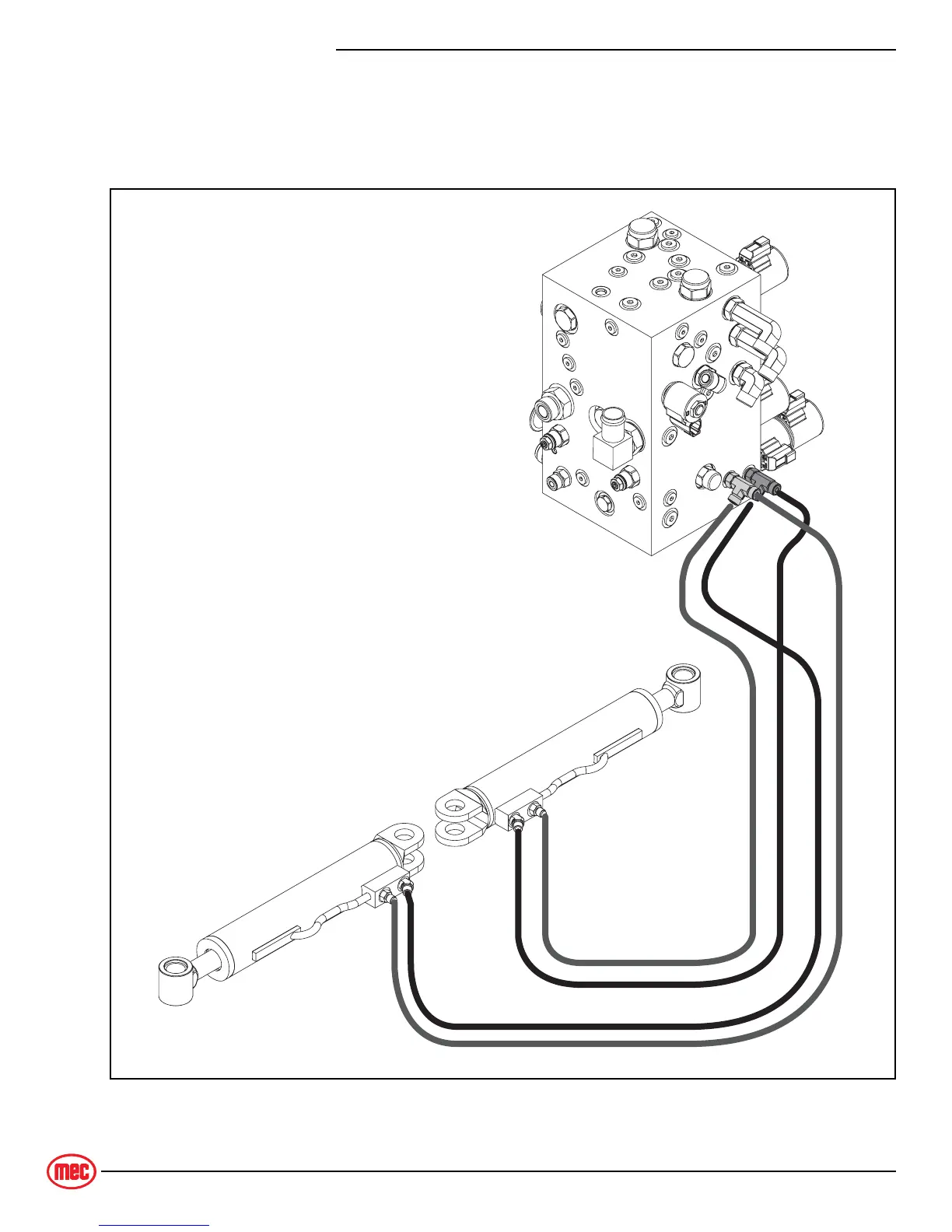

Figure 1-10: Steering Circuit
ART_4593
STRA
STRB
Front of
Machine
Right Side
Left Side
