SYSTEM DESCRIPTIONS
L IFT C IRCUIT
Hydraulic fluid flows to the lift cylinders from Port LFT on the Functions Manifold and is
returned to the to the manifold through the same hose.

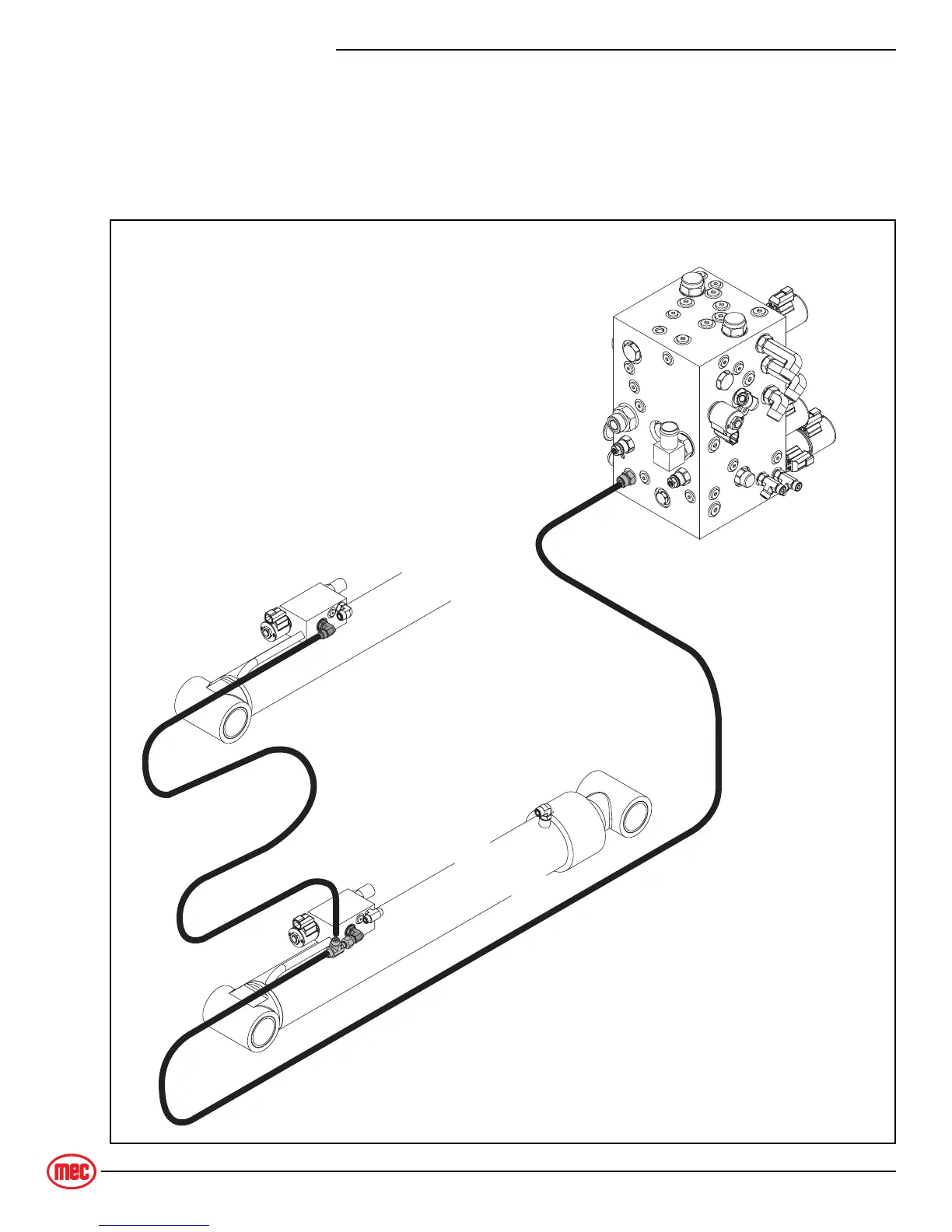

Figure 1-8: Lift Circuit
ART_4591
LFT
