“4069RT” Service and Parts Manual March 2014
Page 1-7
HYDRAULIC FLUID RESERVOIR
H
YDRAULIC
F
LUID
R
ESERVOIR
The Hydraulic Fluid Reservoir consists of the reservoir, a filler cap with breather, a
return filter assembly, a drain plug, a suction strainer and a sight gauge. Check the
reservoir for signs of leakage weekly.
Check the level of the Hydraulic Fluid Reservoir with the platform fully lowered.
DO NOT overfill.

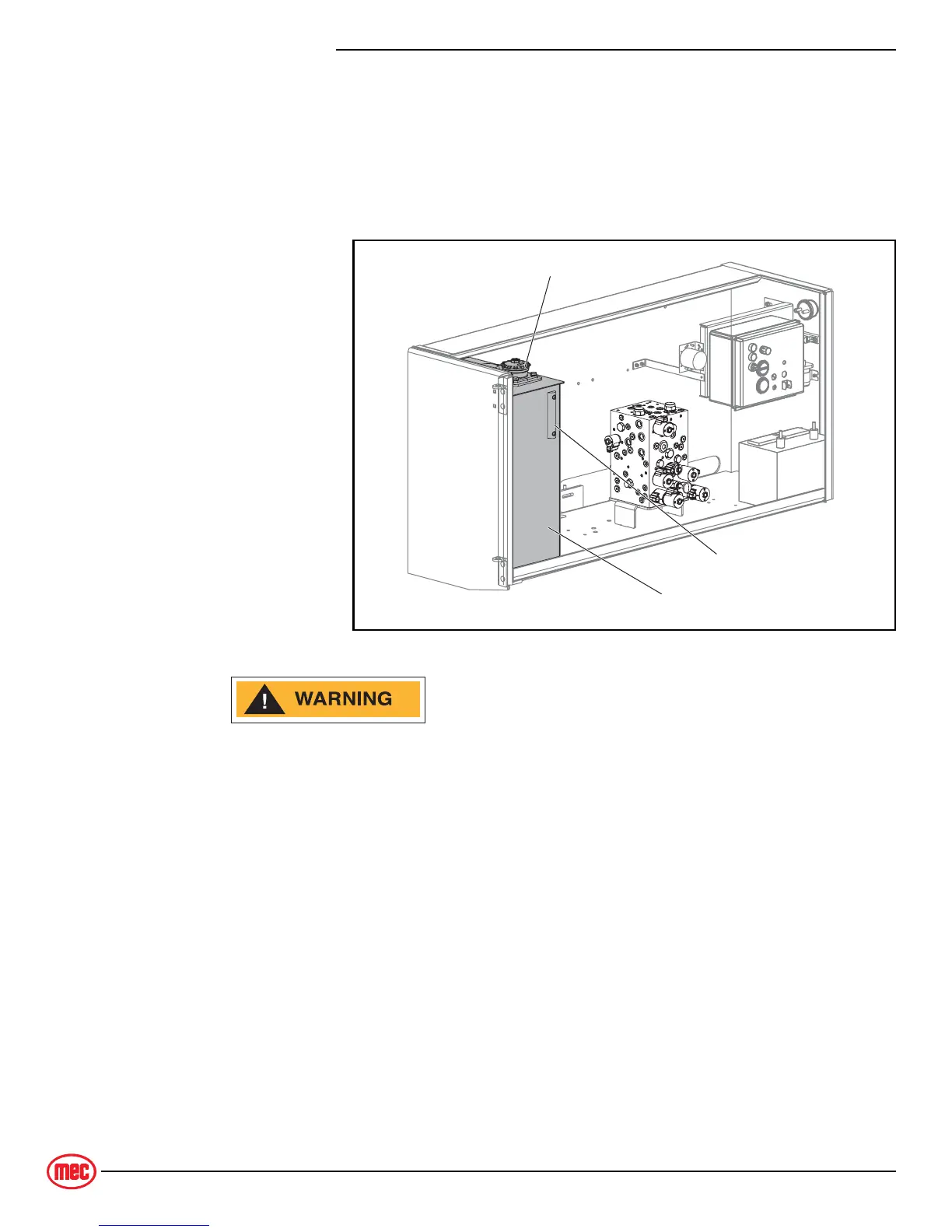

Figure 1-2: Hydraulic Fluid Reservoir
H
YDRAULIC
F
ILTER
BEWARE OF HOT FLUID. CONTACT WITH HOT FLUID MAY CAUSE
SEVERE BURNS.
All machines are equipped with a bypassing filter where the hydraulic fluid returns to
the tank (see Figure 1-2). When the filter is clogged, hydraulic flow bypasses the filter
element. The filter element must be changed every six months or 300 hours. Extremely
dirty conditions may require the filter to be replaced more often.
To replace:
• Unscrew the filter assembly cap, then remove the filter
• Place the new filter into position and press firmly into place
• Carefully thread the filter assembly cap, then hand-tighten only.
ART_4482
Hydraulic
Reservoir
Sight Gauge
Filter
Housing
