“4069RT” Service and Parts Manual March 2014
Page 3-13
LUBRICATION
L
UBRICATION

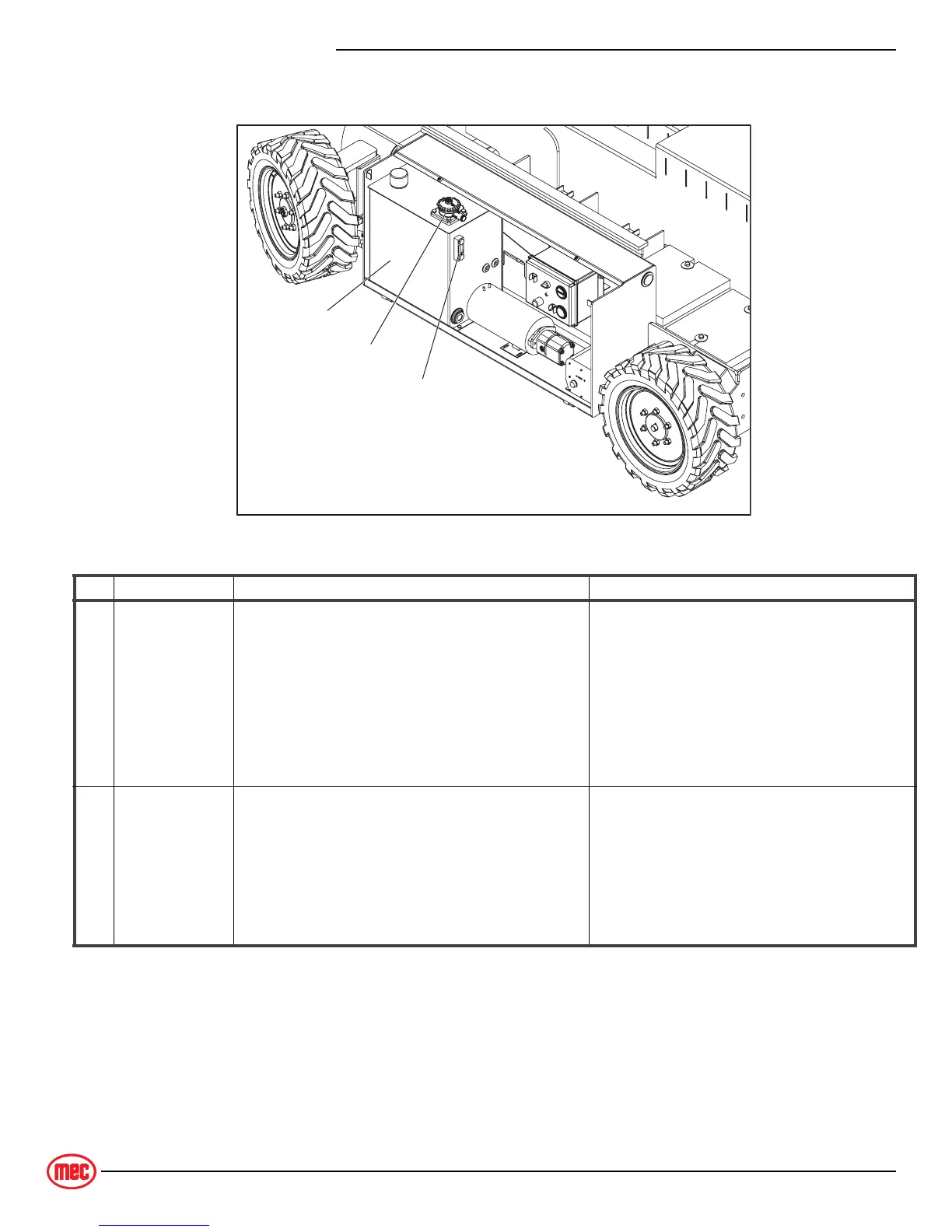

Figure 3-8: Lubrication Points
ART_3816
Sight
Gauge
Filter
Housing
Controls Module
components removed
for clarity
Hydraulic
Reservoir
Lubrication
No. ITEM SPECIFICATION FREQUENCY
1Hydraulic
Reservoir
Normal ambient temperatures
Mobile Fluid DTE 10, DTE 13 M, or AW32
Ambient temperatures below 0° F (-18° C)
Chevron Rando Premium MV
Routine Maintenance
Check sight gauge level daily
Scheduled Maintenance
Change yearly or every 600 hours,
whichever occurs first
Do not substitute other fluids
as pump damage may result.
Fill to the middle of the sight gauge with platform in the
stowed position and outriggers retracted.
2 Hydraulic Filter Filter Element
(located inside Hydraulic Reservoir)
Scheduled Maintenance
Normal Conditions
Change every six months or 300 hours, whichever
occurs first
Severe Conditions--very dusty, exceptionally hot
or exceptionally cold conditions
Change every three months or 150 hours,
whichever occurs first
