Mec 4069RT - Drive Case Drain Circuit

“4069RT” Service and Parts Manual March 2014
Page 1-23
SYSTEM DESCRIPTIONS
D RIVE C ASE D RAIN C IRCUIT
Hoses connect the Case Drain ports of each wheel motor route the fluid back to the
tank at the center return port of the Hydraulic Reservoir.

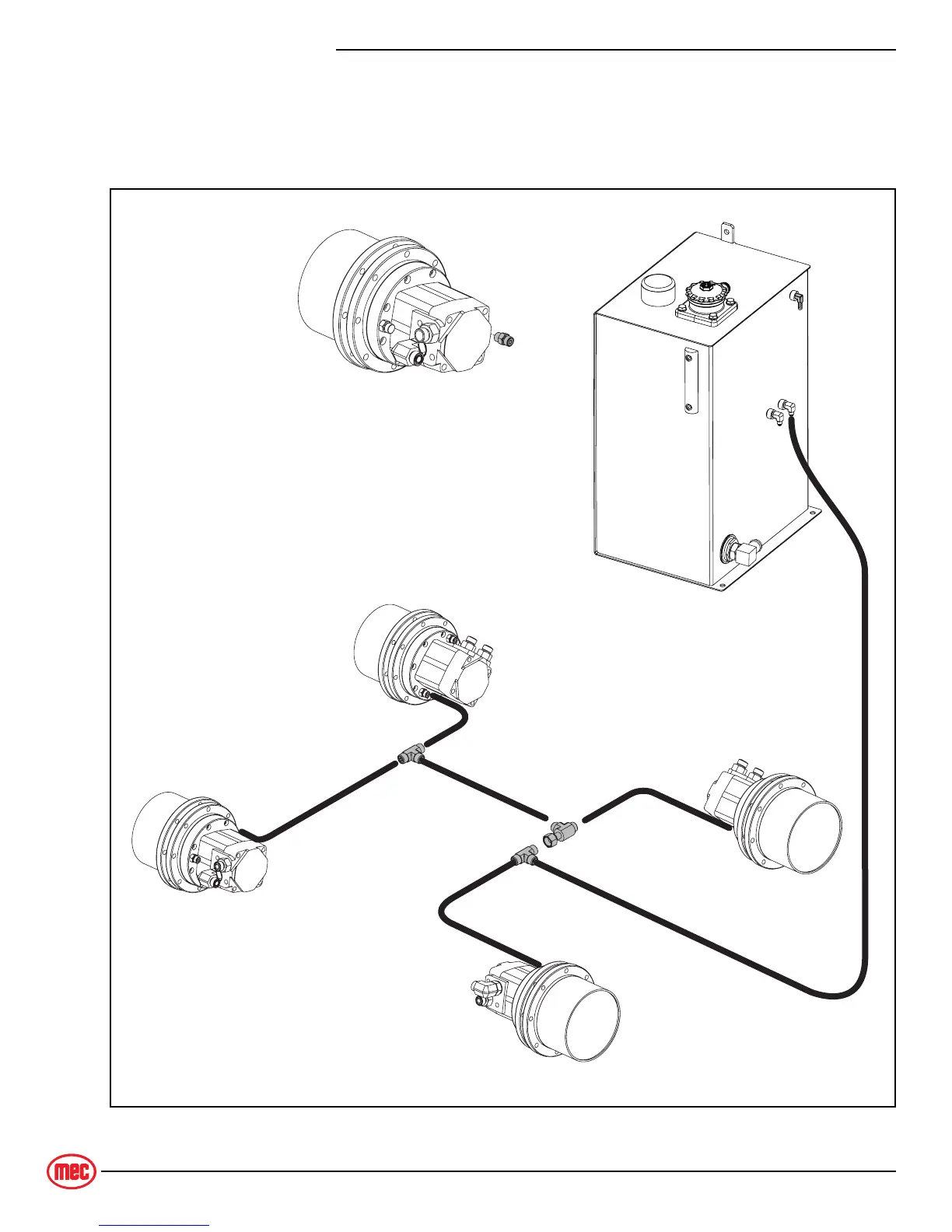

Figure 1-14: Drive Case Drain Circuit
ART_4597
