“4069RT” Service and Parts ManualMarch 2014
Page 3-12
DRIVE MOTORS
F
RONT
D
RIVE
M
OTORS

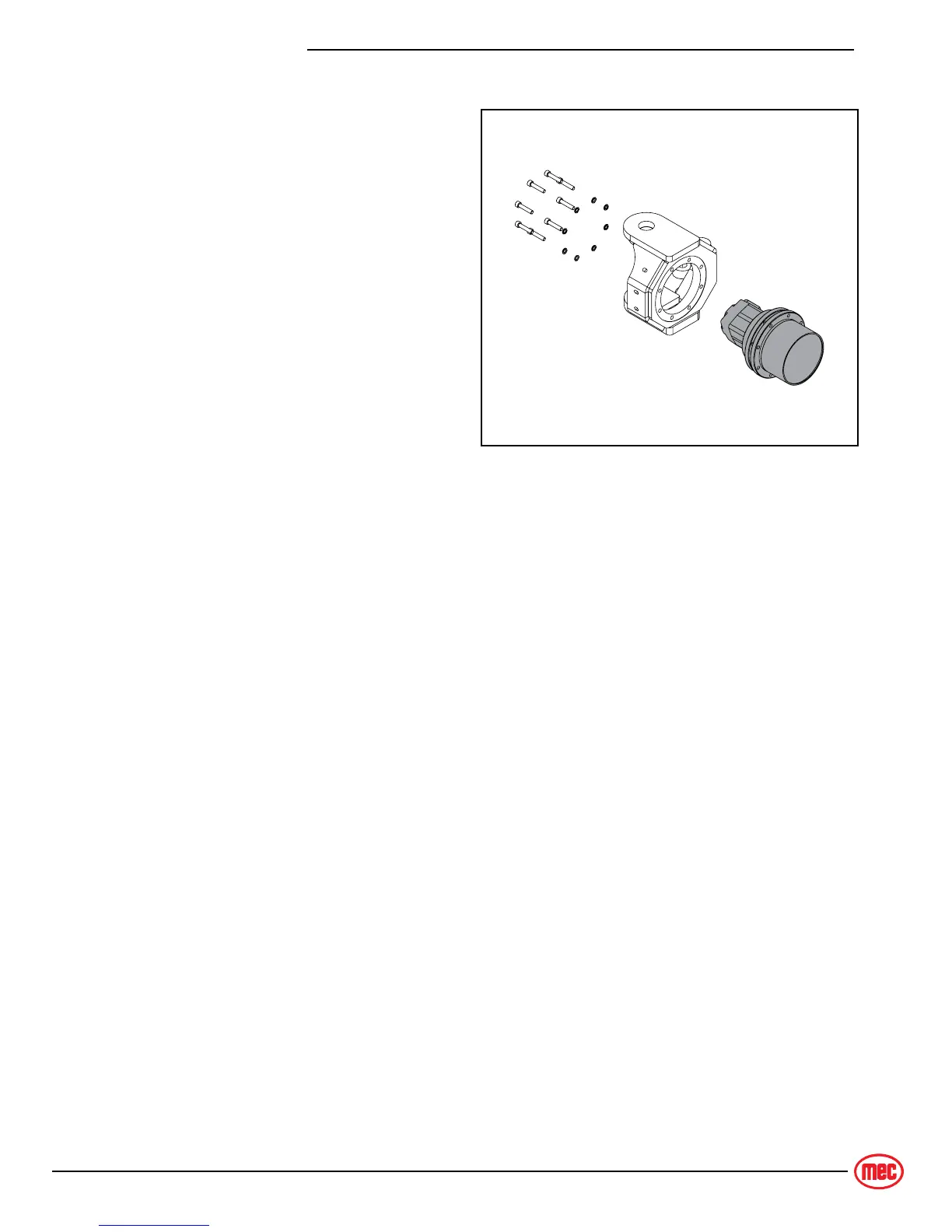

Figure 3-7: Front Drive Motor
Removal
1. Raise and support the machine.
2. Disconnect hydraulic hoses. Immedi-
ately cap and plug all openings to pre-
vent contamination.
3. Disconnect the steering tie bar and
steer cylinder from the steering yoke.
4. Swing the steering yoke out to access
the mounting bolts from behind.
5. Support the motor, then remove the
bolts and carefully remove the drive
motor from the steering yoke.
Installation
Installation is reverse of removal.
• Use Loctite
242 or equivalent on mounting bolts.
• Torque all bolts to 55 lb-ft (75Nm).
ART_4498
