“4069RT” Parts Section
• as req: as required • INCL: Included with assembly • NS: Not a Stock item • REF: Reference only
Lift Cylinders -- Old Style
Lift Cylinders -- New Style

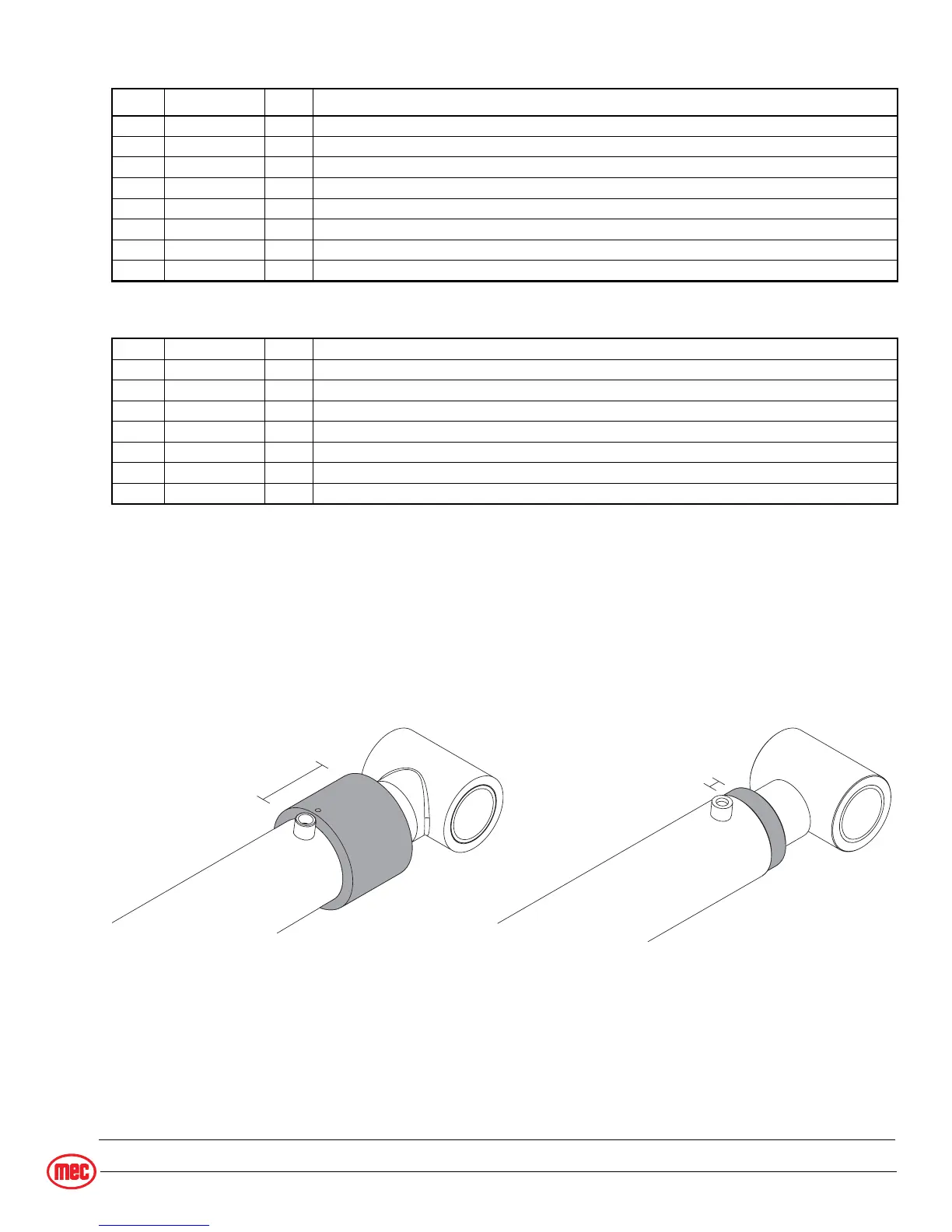

Examine the collar at the rod end of the cylinder to determine whether your machine is equipped with
Old Style or New Style cylinders
• Old Style cylinders have a 3-inch (7.5 cm) collar.
• New Style cylinders have a 1-inch (2.5 cm) collar.
IMPORTANT -- Both cylinders must be changed out if an Old Style cylinder requires replacement.
DO NOT pair a New Style cylinder with and Old Style cylinder.
ITEM PART NO. QTY DESCRIPTION
1 21273 1 Upper Lift Cylinder -- Old Style
-- 93613 -- Seal Kit
2 21272 1 Lower Lift Cylinder -- Old Style
-- 93614 -- Seal Kit
3 50790 2 Fitting, MB-MJ90-6-6
4 91464 2 Valve
5 93615 2 Coil
6 90969 2 Valve, Relief
1 93519 1 Upper Lift Cylinder -- New Style
-- 93642 -- Seal Kit
2 93518 1 Lower Lift Cylinder -- New Style
-- 93643 -- Seal Kit
3 50790 2 Fitting, MB-MJ90-6-6
4 91464 2 Valve
5 93615 2 Coil
6 90969 2 Valve, Relief
ART_4601
1 inch
2.5 cm
3 inch
7.5 cm
Old Style
Cylinder
New Style
Cylinder
