Mec 4069RT - Page 244

March 2014
Page G-4

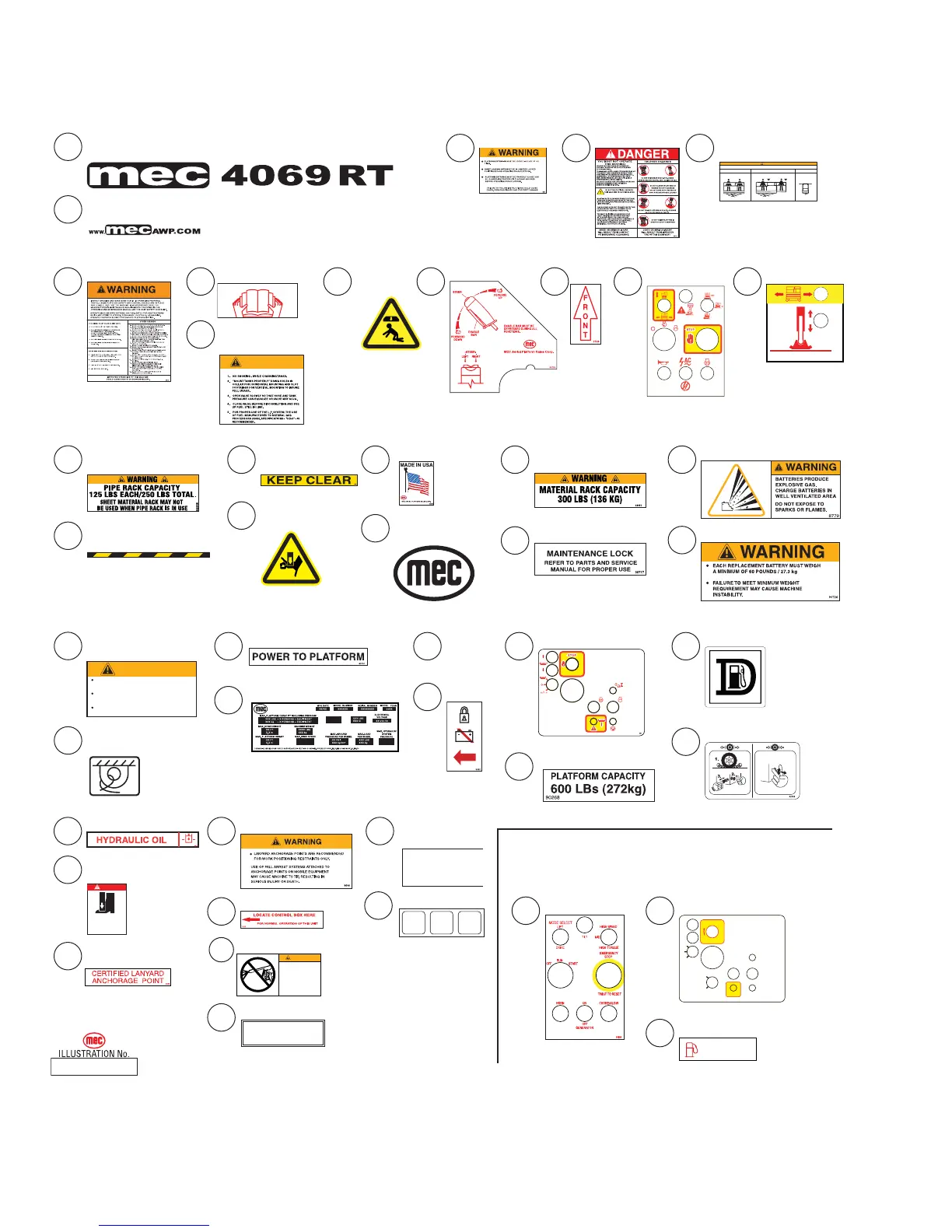

“4069RT” Parts Section
18
90739
8911
7
8911
9
91850
6 Places
26
90751
11026730
25
11026730
4 Places
ART_4405
9910
17
9910
4 Places
15
7982
4 Places
21
90717
19
90719 (white)
93020 (dark gray)
13
91730 (Option)
91730
22
8779
28
not used
10
90729
23
90726
34
6873
6
90722
4
90721
38
7155
3
90730
36
8605
6 Places
16
8503
2 Places
11
7156
2
92416 (white), 92547 (dark gray)
3 Places
DANG ER
STAND CLEAR
OUTRIGGER CONTACT
WILL CAUSE SERIOUS
CRUSHING INJURY
9465
35
9465 (Option)
4 Places
WARNING
90725
REPLACE TIRES WITH MANUFACTURER’S
EQUIPMENT ONLY.
FAILURE TO USE MANUFACTURER’S
TIRES MAY CAUSE MACHINE INSTABILITY.
REFER TO SERVICE AND PARTS MANUAL
FOR REPLACEMENT PART NUMBER.
24
90725
4 Places
27
92767
92767
MEC Aerial Work Platform Sales Corp.
1401 S. Madera Ave
Kerman, CA 93630
MAX. SIDE LOAD MATERIAL RACK CAPACITY
250 LBS
113 KG
28 MPH
12.5 m/s
XXXX PSI
XXX bar
40
92054
Multiple Patents
Pending
92054
39
90732
90732
DO NOT POWERWASH OR
SPRAY ELECTRONIC
COMPONENTS OR
CONNECTORS.
MOISTURE MAY CAUSE
DAMAGE AND/OR
ERRATIC OPERATION
WARNING
14
92848 (Option)
2 Places
37
8606 (option)
29
9052
20
93051
5 Places
41
8502
4 Places
8502
INFLATE TO TIRE
MANUFACTURER'S MAX.
SPECIFICATIONS
SERVICE MANUAL
OR SEE
33
92089
1
93209 (white), 93210 (dark gray)
4 Places
93059
2 Places
5
WARNING
93059
MAXIMUM PLATFORM CAPACITY - EVENLY DISTRIBUTED
EXTENSION RETRACTED EXTENSION EXTENDED SIDE LOAD
600 LBS
272 kg
250 LBS
113 kg
100 LBS
444 N
2 PERSONS
1 PERSON
350 LBS
159 kg
31
90268
STAR T
RELAY
THROTTLE
RELAY
GLOW/
CHOKE
RELAY
92119
42
92119
93211
12*
93211
30*
91930
32*
91975
*Substitute the following for machines
equipped with optional Dual Fuel Engine:
12
91158
BASE
15 AMP
BREAKER
START
START DELAY
CHOKE
PROPANE
GASOLINE
92414
EMERGENCY
LOWERING
PLATFORM
OFF
PUSH FOR EMERGENCY
STOP
TWIST TO RESET
RAISE
LOWER
30
92414
GASOLINE
ONLY
6872
32
6872
WARNING
L.P.G.
6948
8
6948 --
Dual Fuel Only
