ALARMS AND SWITCHES
Figure 2-7: Pressure Transducer
L IFT P RESSURE
T RANSDUCER
The Lift Pressure
Transducer is used
on machines
equipped with the
optional Overload
Sensing System. It
provides lift
cylinder pressure
information to the
GP400 and works
in conjunction with
two EZfit Angle
Sensors.
Excessive
pressure indicates
platform overload.
When the GP400
reads a certain
output from the
pressure sensor it
will:
• disable lift, lower
and drive operation.
• sound audible alarms.
• turn ON the OVERLOAD light on the upper control panel.
Remove weight from the platform to restore function and continue.

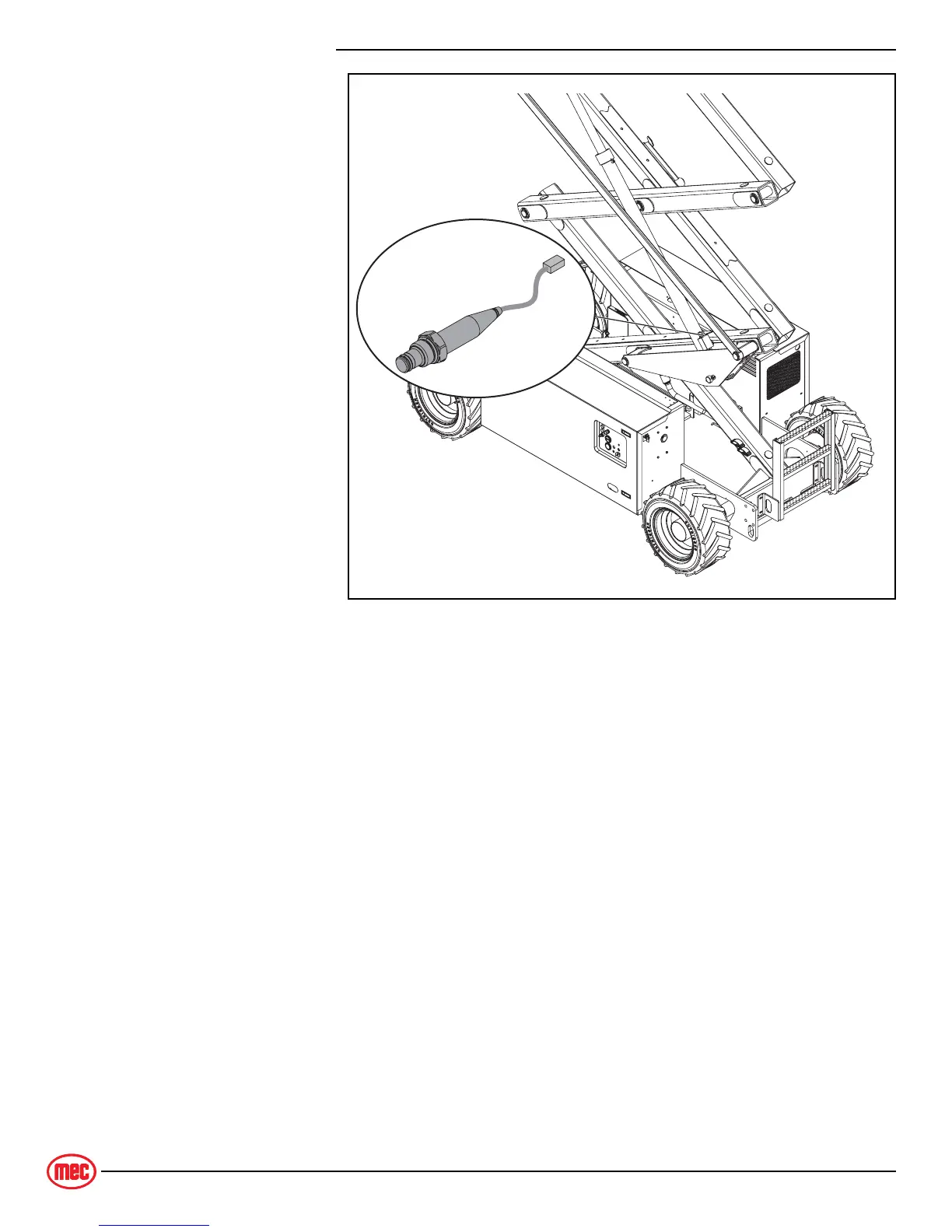

ART_4489
Only on machines
equipped with optional
Overload Sensing System
Lift Pressure
Transducer
