“4069RT” Service and Parts Manual March 2014
Page 3-7
SCISSOR STACK
8. Carefully lift until the rear of the scissor is clear.
9. Slide the scissor assembly toward the front until the slide blocks reach the end of
slide channel, then lift the scissor assembly.
THE SCISSOR ASSEMBLY MAY SHIFT SUDDENLY UPON CLEARING THE
SLIDE CHANNEL.

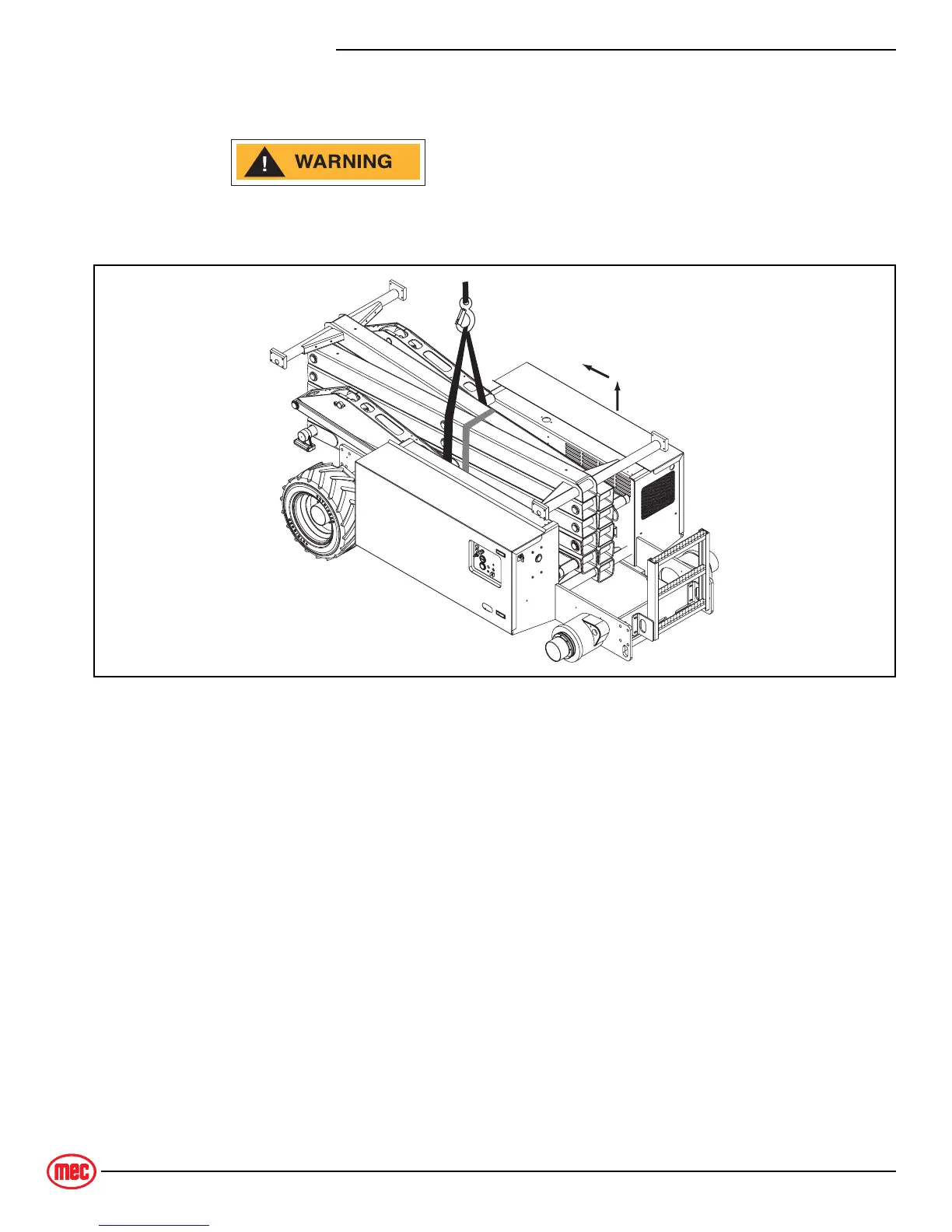

Figure 3-3: Scissor Assembly Removal, continued
Installation
Clean all parts before installation. Replace worn or damaged parts with new parts.
Installation is reverse of removal.
• Use Loctite
242 or equivalent on mounting bolts.
• Torque all bolts to specifications listed in the Introduction Section of this manual.
ART_4494
Lift rear of scissor assembly,
then slide
To Next Page
