LIFT CYLINDERS
8. Lift the cylinder from the scissor assembly.
Installation
Clean all parts before installation. Replace worn or damaged parts with new parts.
Installation is reverse of removal.
• Use Loctite
242 or equivalent on mounting bolts.
• Torque all bolts to specifications listed in the Introduction Section of this manual.

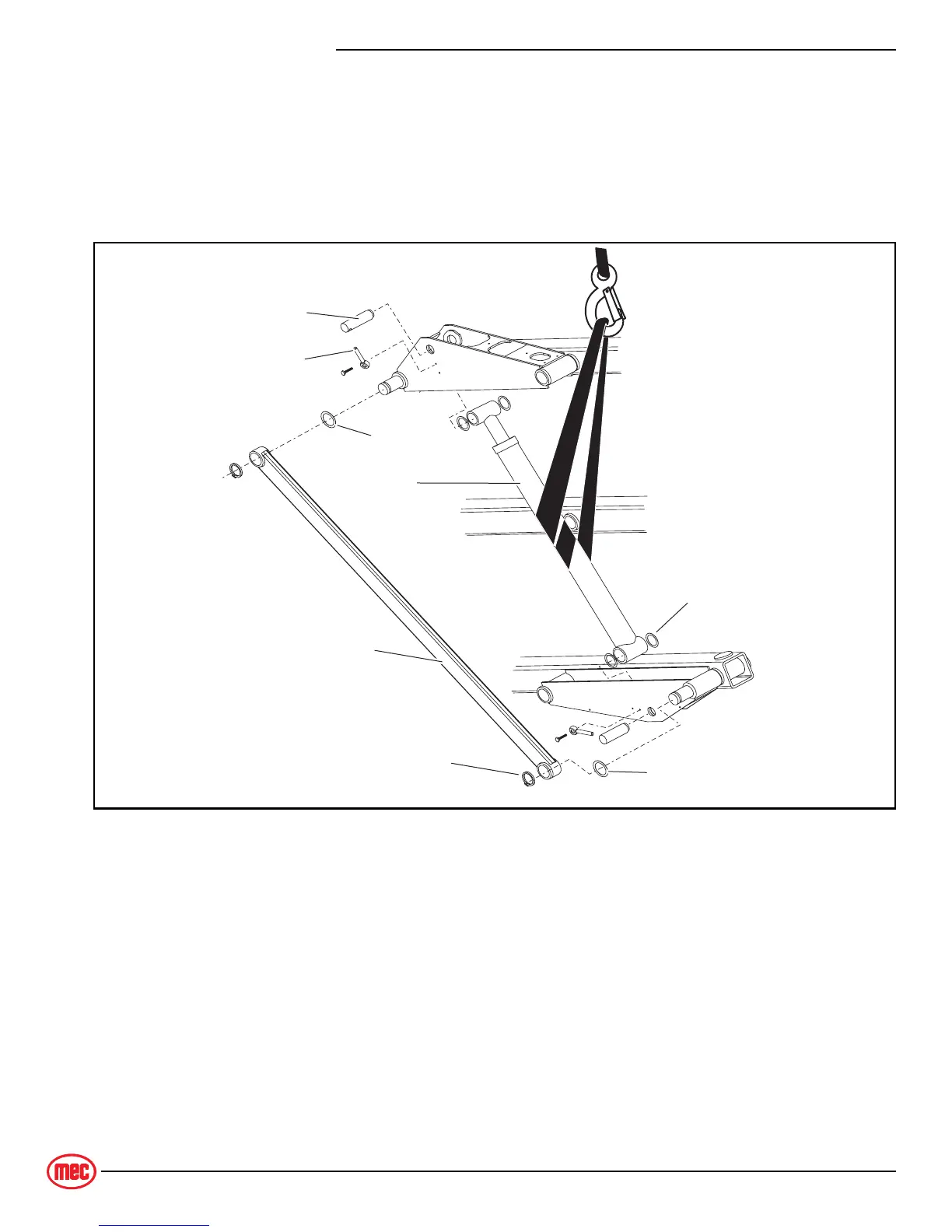

Figure 3-4: Lift Cylinder
ART_4495
Support
Beam
Lift
Cylinder
Cylinder
Mount Pin
Retaining
Pin
Retaining
Ring
Nylon
Washer
Nylon
Washer
Nylon
Washer
