1. Install the seawater inlet hose assembly to the water inlet fitting.
a. Position the retainer clip in the closed position.

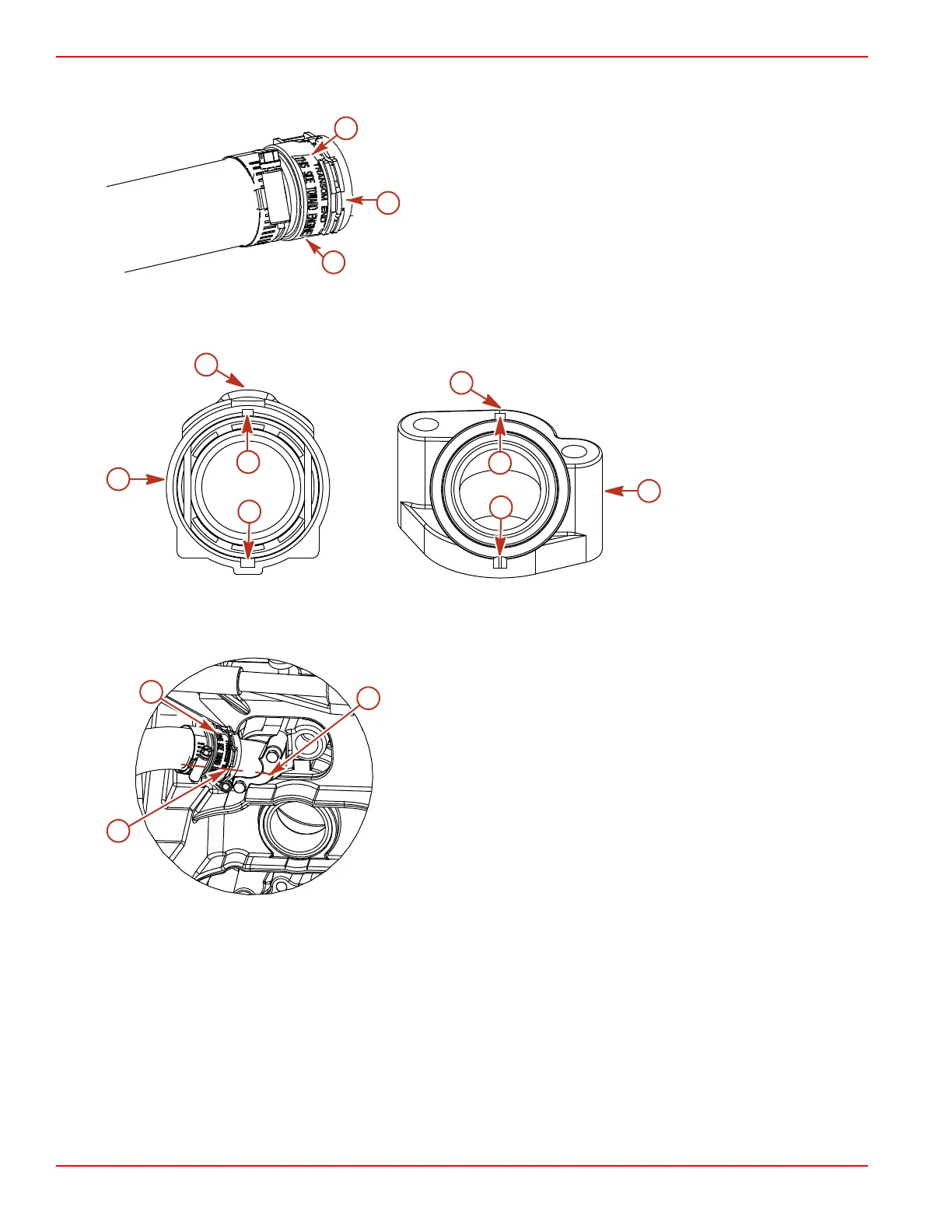

Seawater inlet hose assembly
a - Retainer clip closed
b - Quick connect fitting
c - Hose decal
b. Position the seawater inlet hose assembly with the center of the retainer clip and the hose decal toward the engine.
IMPORTANT: Tabs and slots are sized to mate only at the correct orientation. Mate the small tab with the small slot.
c. Align the slots of the quick connect fitting to the tabs of the water inlet fitting.
a - Quick connect fitting
b - Small slot
c - Large slot
d - Seawater inlet fitting
e - Small tab
f - Large tab
g - Center of retainer clip
(toward engine)
h - Centerline of water inlet
fitting (toward engine)
d. Ensure that the center line of the water inlet fitting and the center of the retainer clip are positioned toward the engine.
2. Push the seawater inlet hose assembly onto the water inlet fitting until they are connected.
NOTE: The retainer clip snaps into place and assumes the closed position when properly connected.
Shown with engine removed for visual clarity
a - Centerline of water inlet fitting
b - Retainer clip in closed position
c - Hose decal
3. Perform a pull test on the water hose quick connection.
8512
a
b
c
g
b
c
a
h
e
f
d
8513
8514
a
c
b
Installation
Page 2B-10 © 2016 Mercury Marine 90-8M0099748 eng DECEMBER 2015
