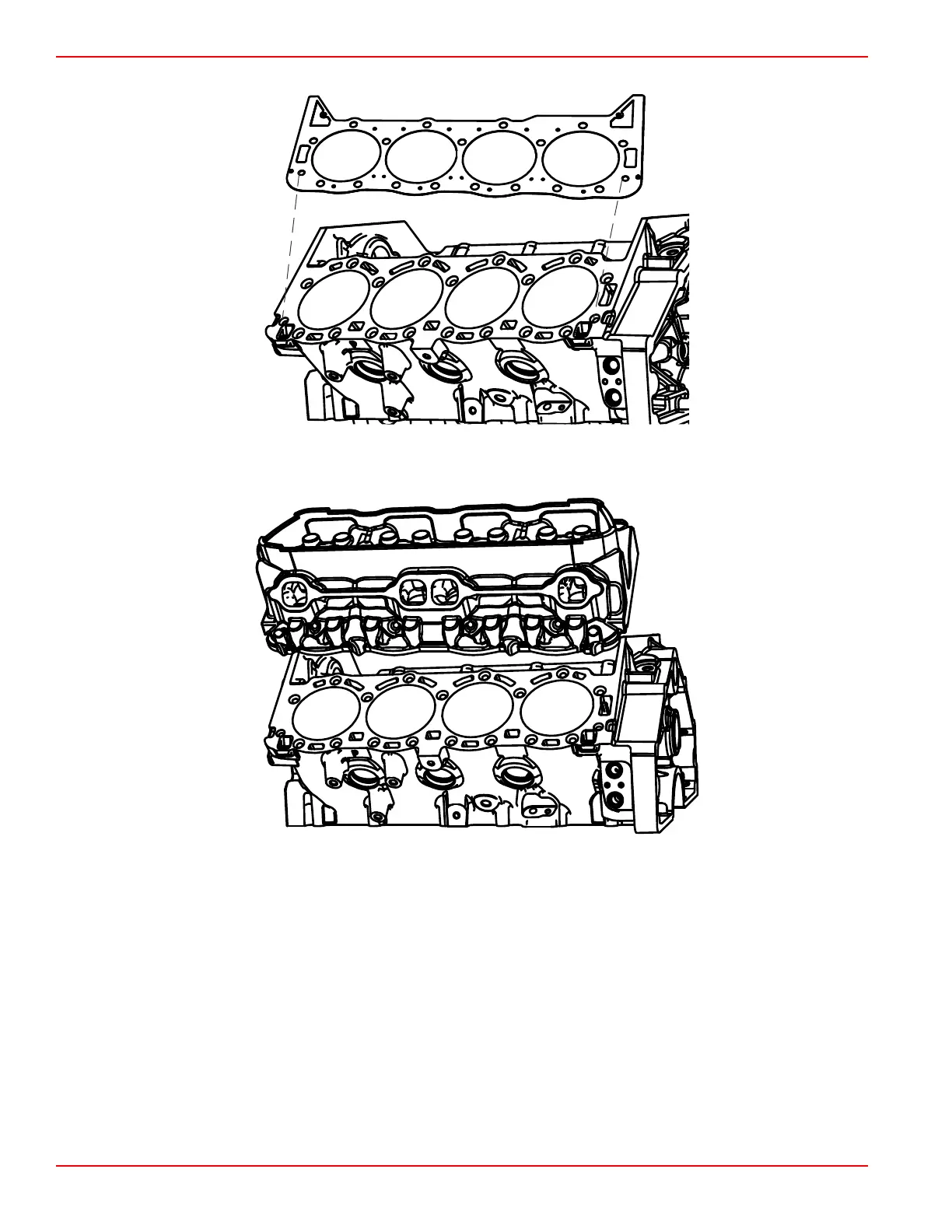

2. Place a new head gasket in position over the dowel pins.

59563

3. Carefully set the cylinder head in place over the dowel pins.

59565
