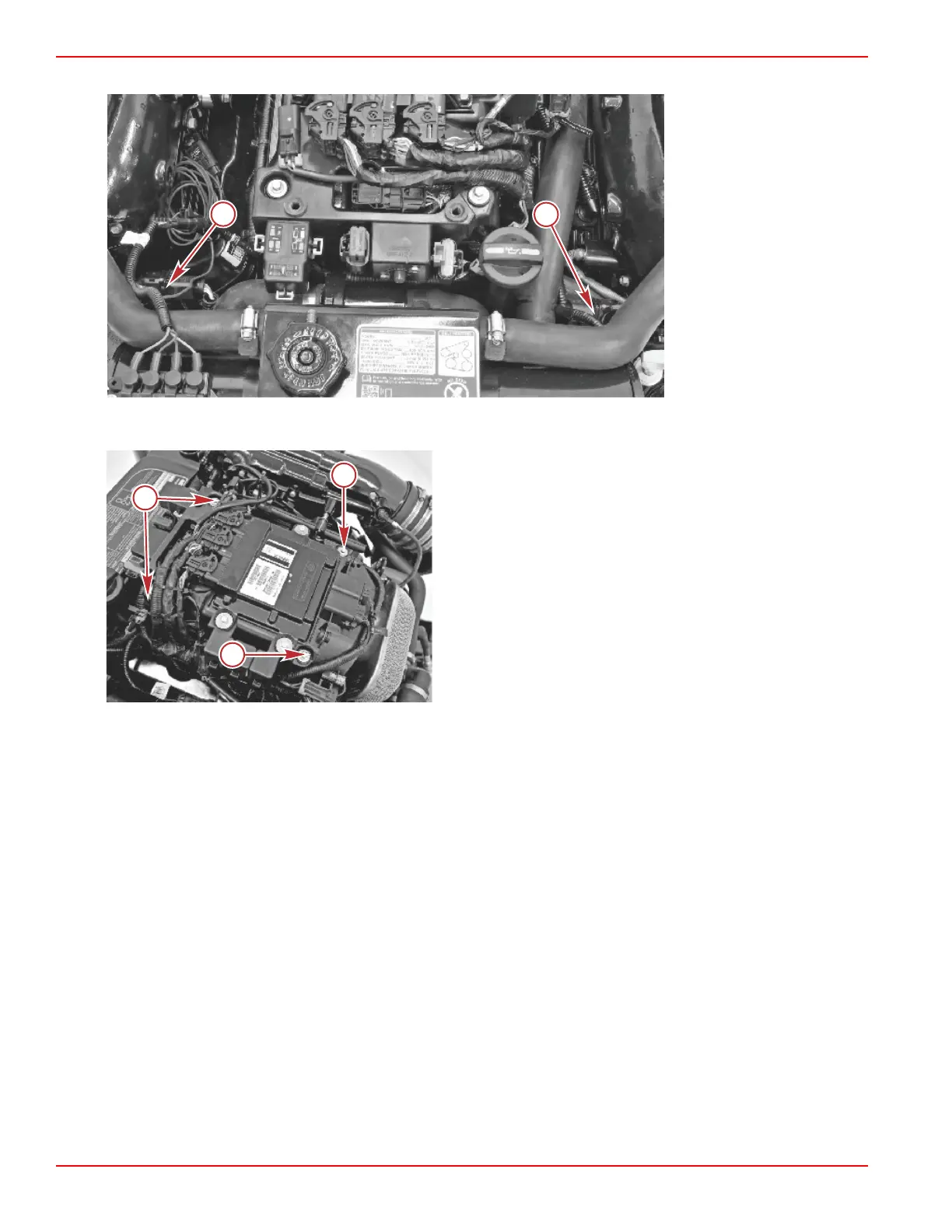

11. Connect the port and starboard precatalyst oxygen sensors.

a - Starboard precatalyst

oxygen sensor

b - Port precatalyst oxygen

sensor

12. Install the PCM relay bracket screws.

a - Mounting screws

59362

56506
