8.6 Remote interface
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
58
￭￭￭￭￭￭￭￭
876 Dosimat plus

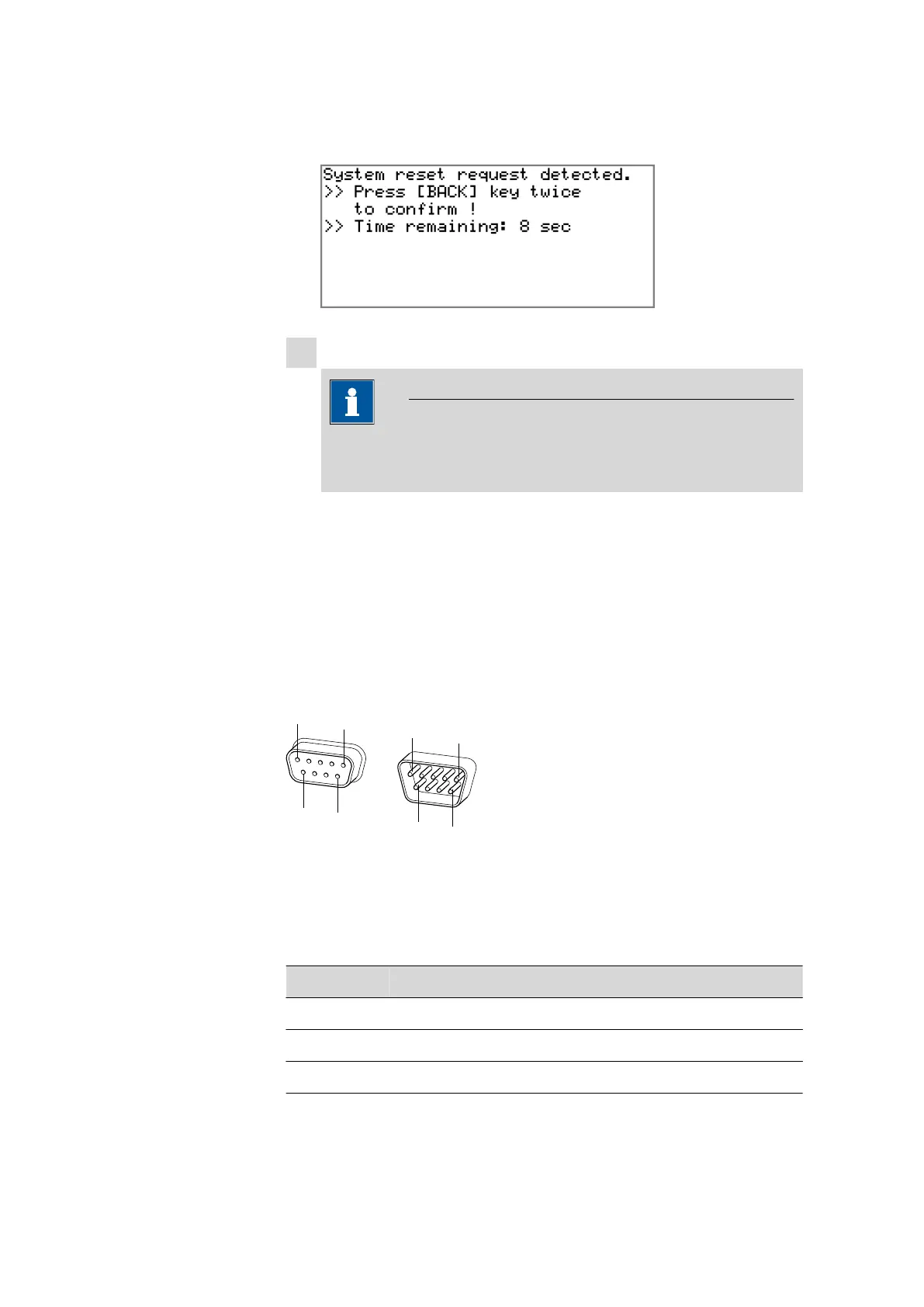

The dialog for confirmation of the initialization is displayed for 8 s.
The initialization must be confirmed during this time.
3
Confirming the initialization
NOTICE
If the request is not confirmed within 8 s, then the procedure will
be canceled.
￭ Press [BACK] twice.
Initialization is started. The process takes approximately 80 s. The
instrument will be automatically restarted after successful initializa-
tion.
8.6 Remote interface
8.6.1 Pin assignment of the remote interface
1
5
6
9
5
1
9
6
Figure 20
Pin assignment of remote socket and remote plug
The above figure of the pin assignment applies for all Metrohm instru-
ments with 9-pin D-Sub remote connector.
Table 3
Inputs and outputs of the remote interface
Pin No. Assignment Function
1 Output 0 Ready/EOD
2 Output 1 -
3 Output 2 -
