Metronics Quadra-Chek 200

To Next Page

To Previous Page

Quadra-Chek

QC200

3-101

Step 4

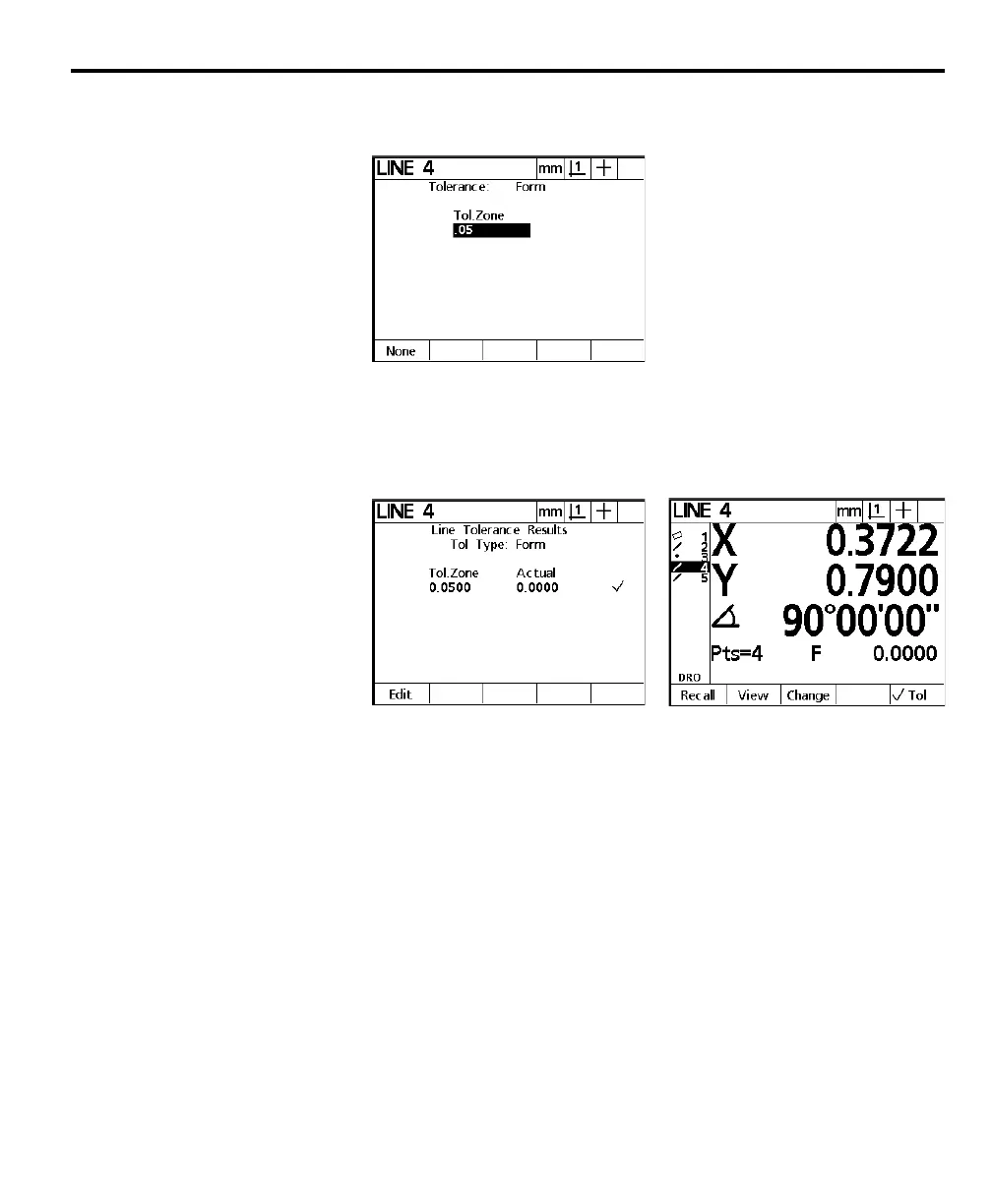

Enter the desired tolerance zone value.

Step 5

Press the finish key.

The tolerance results are displayed as shown.
