Chapter 3 Operation
3-102
Circle Tolerances
To perform a true position tolerance on a circle
NOTENOTE
NOTENOTE
NOTE
Version 1.22 of the QC200 software shows true positionVersion 1.22 of the QC200 software shows true position
Version 1.22 of the QC200 software shows true positionVersion 1.22 of the QC200 software shows true position
Version 1.22 of the QC200 software shows true position
tolerancing as RFS tolerancing.tolerancing as RFS tolerancing.
tolerancing as RFS tolerancing.tolerancing as RFS tolerancing.
tolerancing as RFS tolerancing.

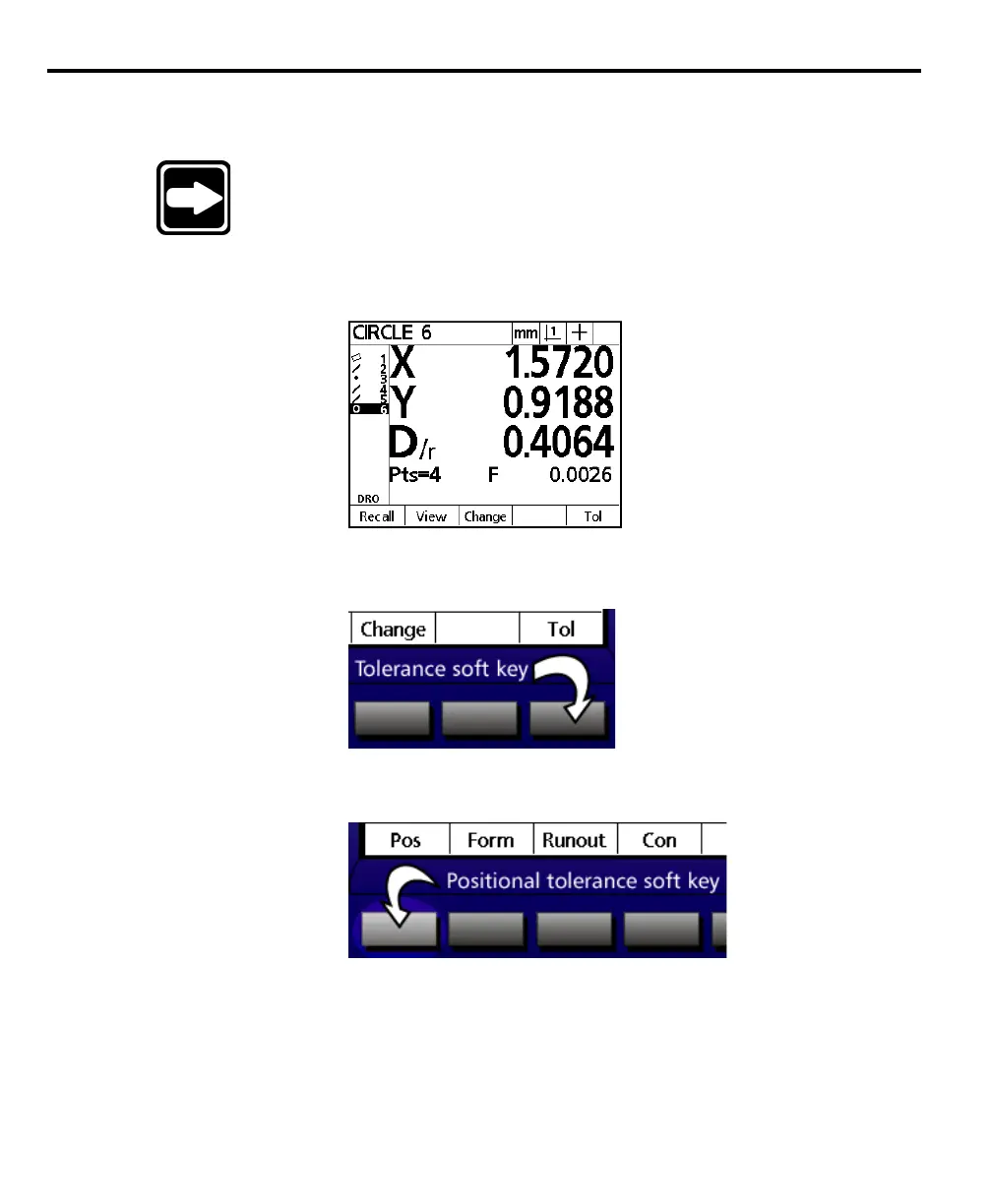

Step 1
Highlight a circle in the features list as shown.
Step 2
Press the tol soft key.
Step 3
Press the pos soft key to perform a positional tolerance.
To Next Page
