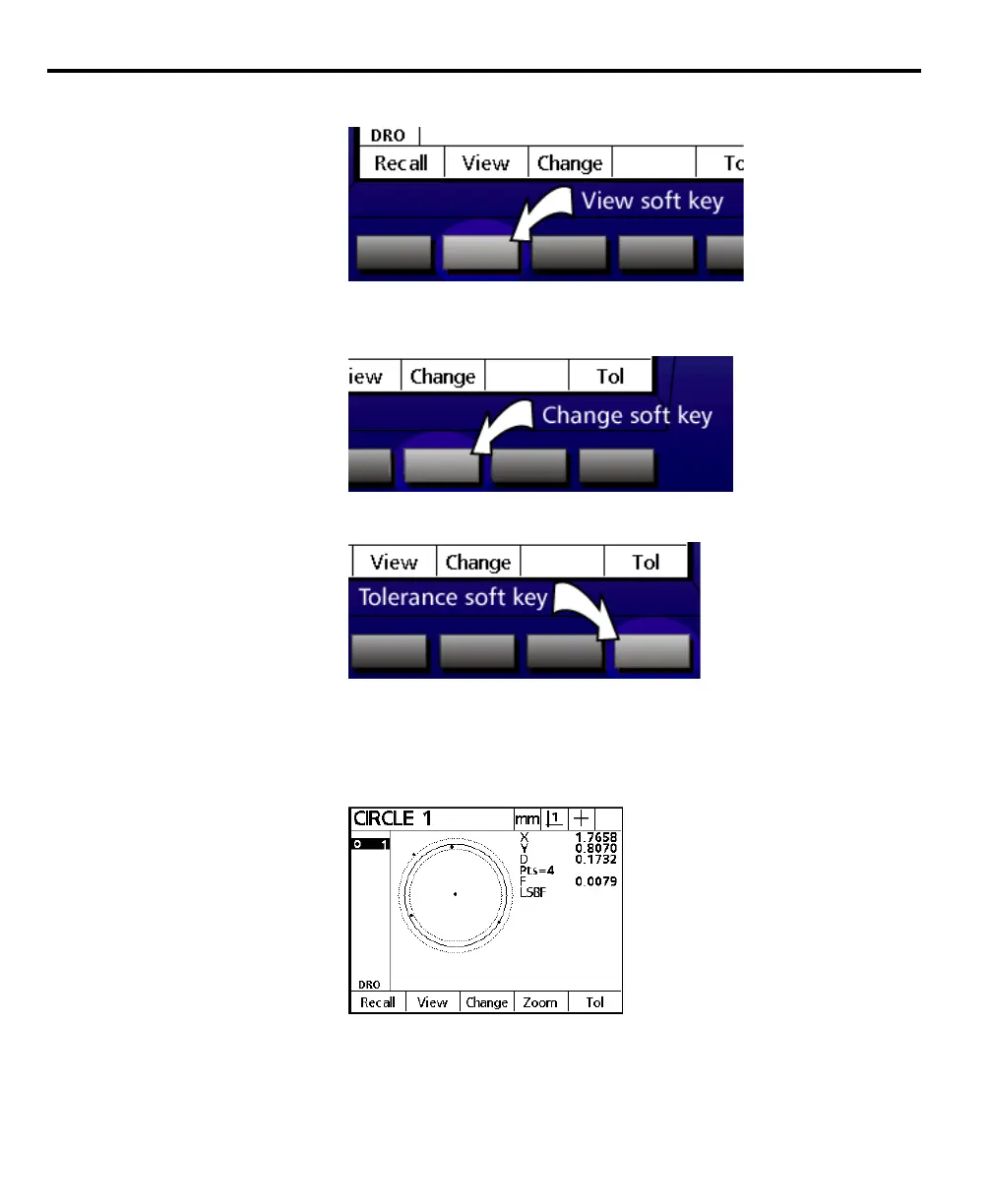

Press the view soft key to toggle the screen between data and graphic screens.
Press the change soft key to select the desired algorithm used to calculate the
feature.
Press the tolerance (tol) soft key to perform a tolerance on the feature.
Graphic screens
Graphic screens display a graphic feature and numeric data. Information on
graphic screens includes the data points measured and the best-fit geometry
calculated for those points.
Numeric data displayed on graphic screens is identical to the data screen. Addi-
tional information includes form values and the algorithm used to calculate the
feature.
