Chapter 3 Operation
3-18

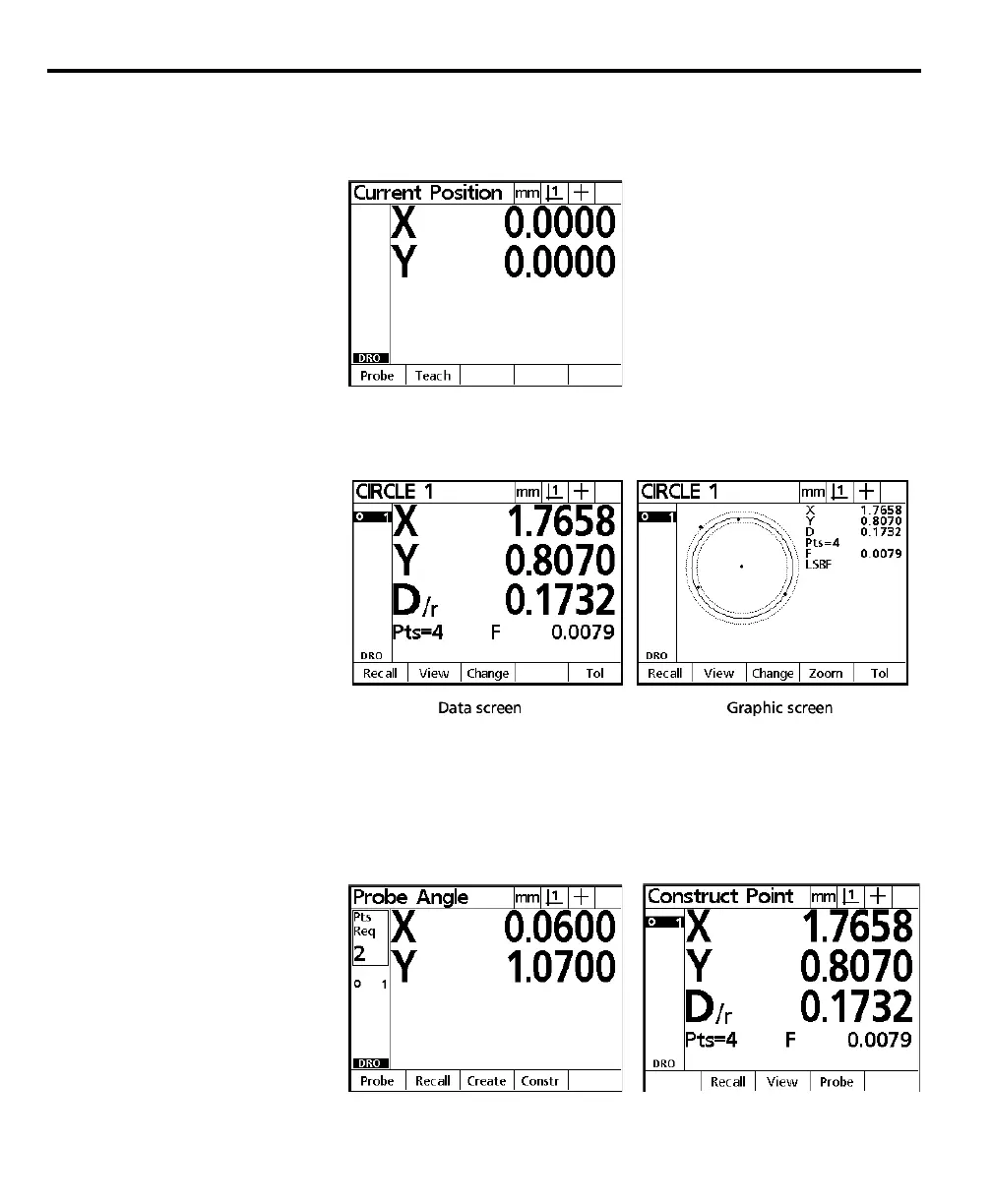

LCD screens
The digital readout (DRO) screen shows the location of the axes prior to measur-
ing a feature.
Once the feature is measured there are two basic types of screens displayed by the
QC200: data screens and graphic screens.
Both data and graphic screens are associated with a feature. For example, there
are circle data screens and circle graphic screens as shown above.
Screens displayed when probing or constructing features are referred to by their
respective titles. For example, there are probe angle and construct point screens.
