Quadra-Chek
®
QC200
3-5

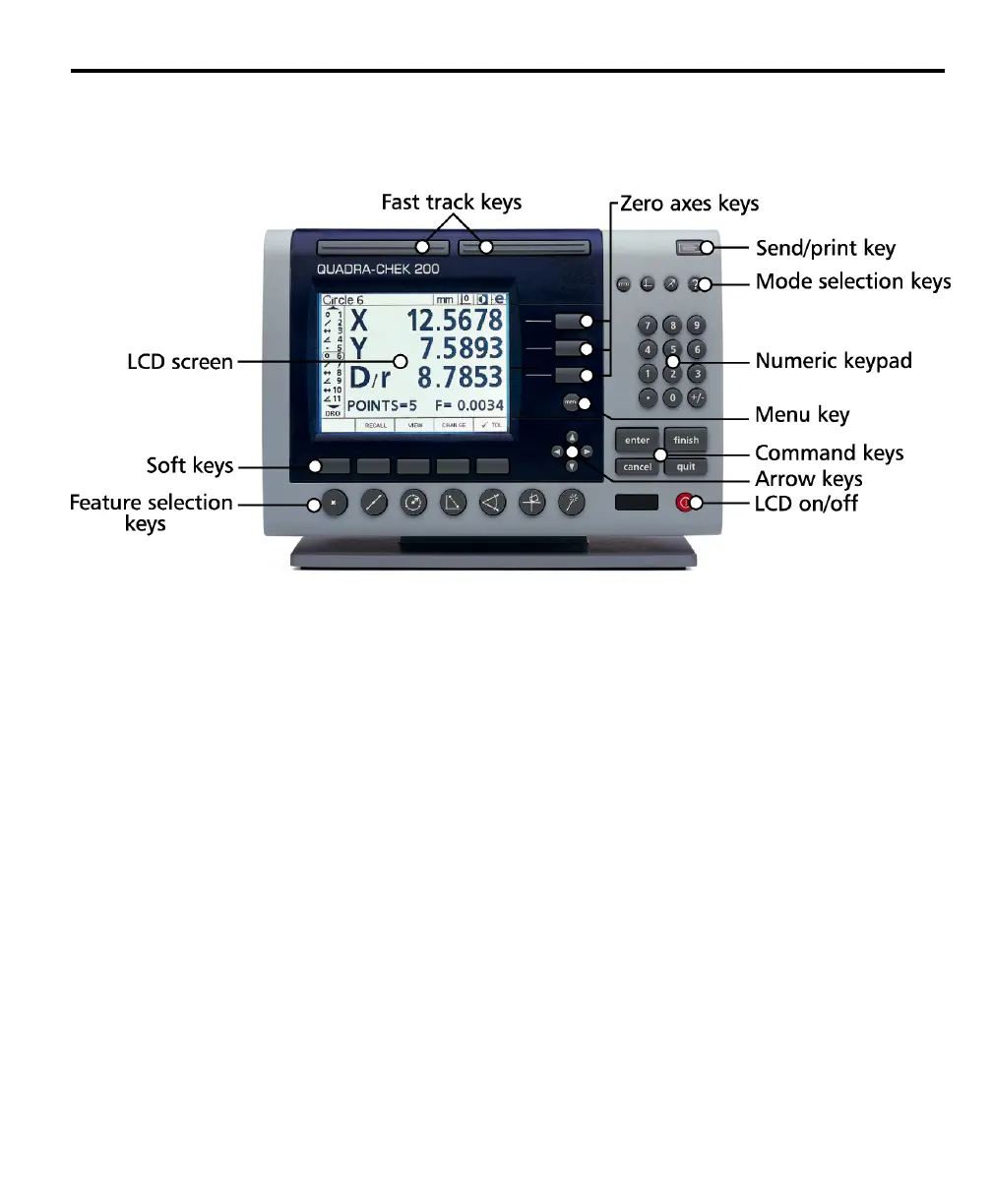

Controls & Display
There are several types of keys (buttons) located on the front of the QC200.
• mode selection
• feature selection
• command keys
• soft keys
• fast keys
• arrow keys
• numeric keypad
• display on/off
Mode selection keys
There are four mode selection keys located above the numeric keypad:
• mm/inch
• datum
• polar/Cartesian
• help
