Chapter 7 Setup

7-16

Step 4

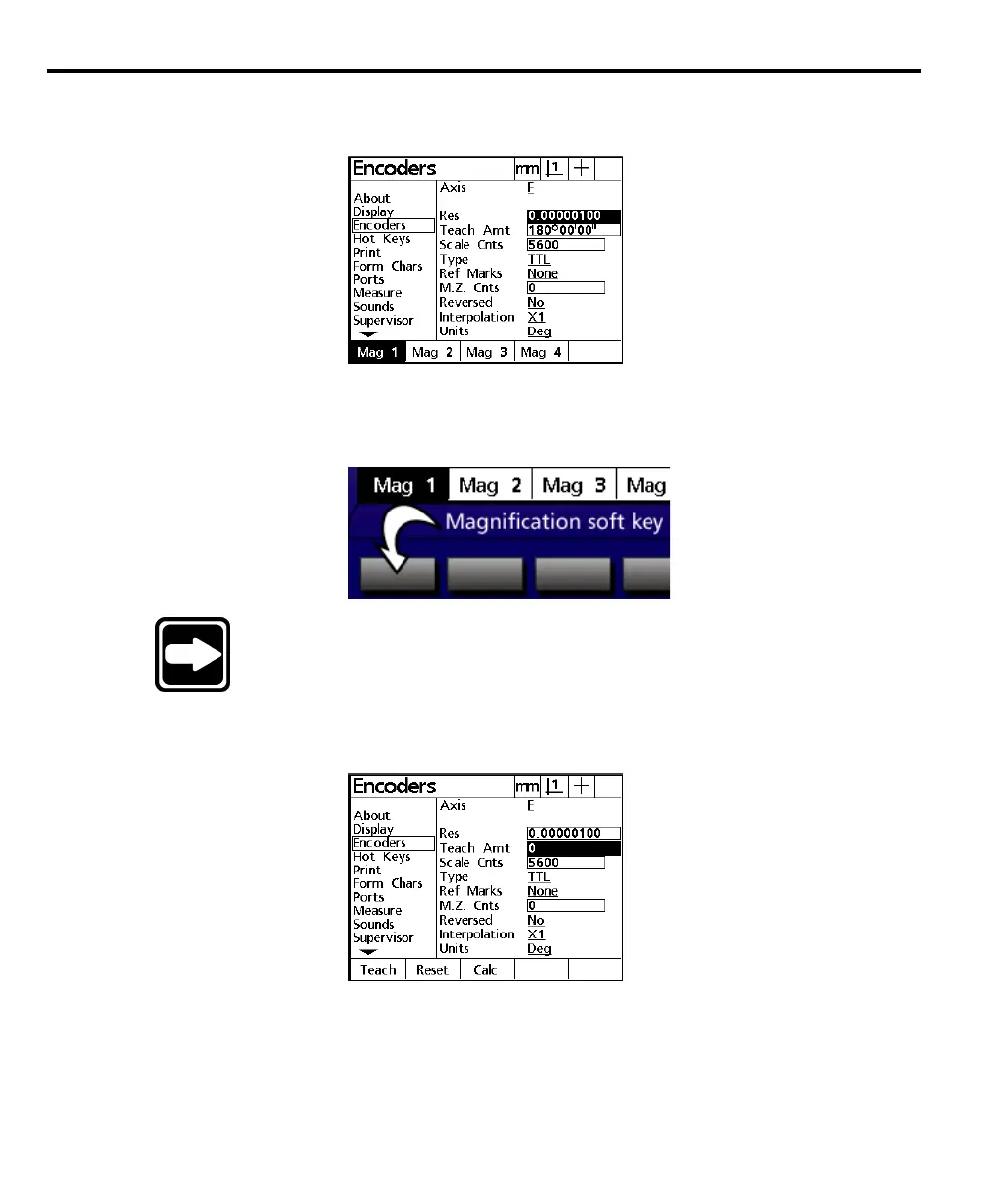

Highlight the resolution (res) field as shown.

Step 5

Press the soft key for the desired magnification.

NOTENOTE

NOTE

This example calibrates magnification 1. Choose the desiredThis example calibrates magnification 1. Choose the desired

This example calibrates magnification 1. Choose the desired

magnification.magnification.

magnification.

Step 6

Highlight the teach amount (teach amt) field as shown.
