Metronics Quadra-Chek 200 - Page 98

Chapter 3 Operation
3-48

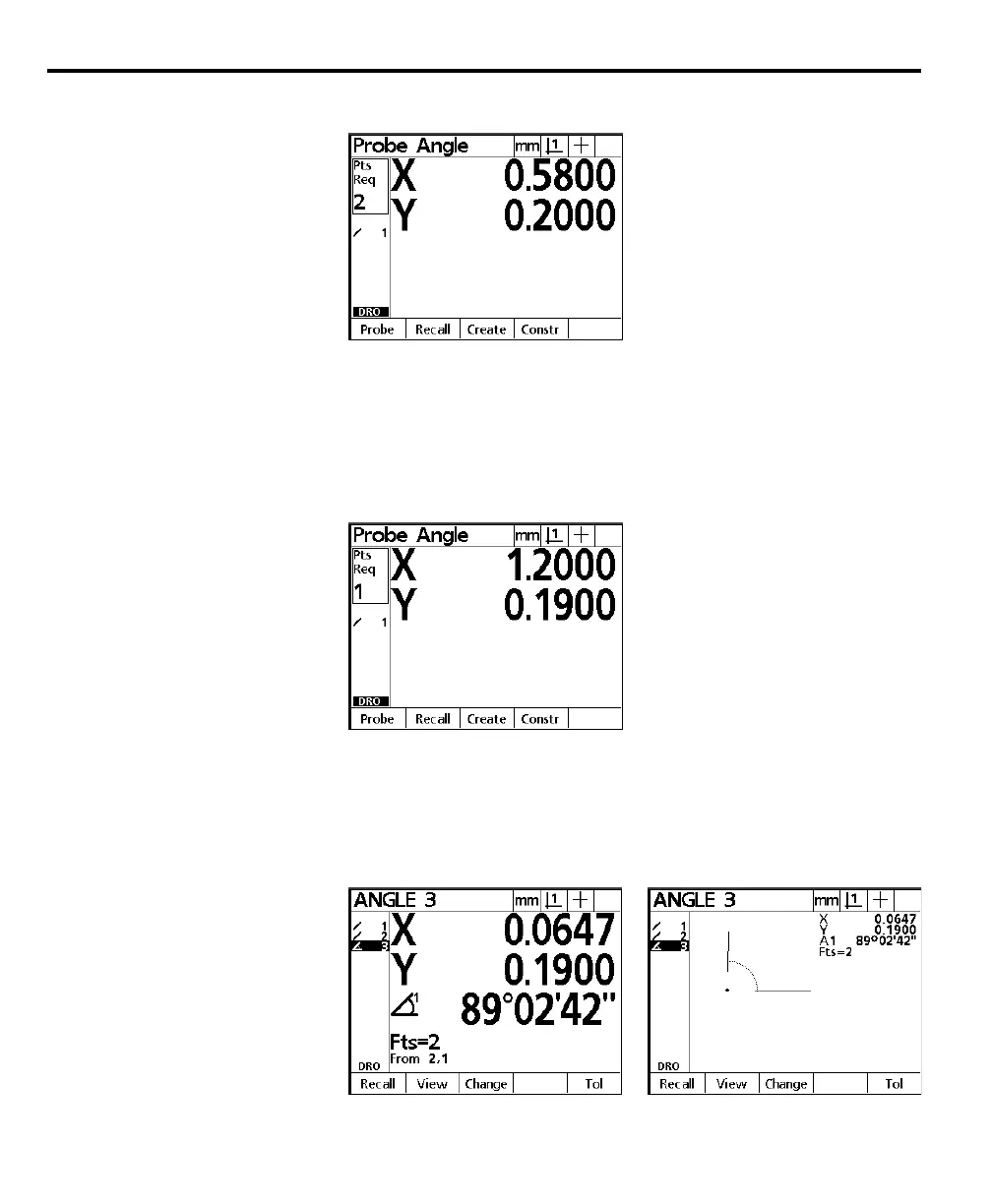

The probe angle screen is displayed as shown.
Step 7
Press the enter key.
Step 8
Probe the second point on the second leg as shown in step 6. Press the enter key
to enter the point.
Step 9
Press the finish key.
The angle feature data is displayed on the screen and added to the feature list.
Press the view soft key for a graphic representation of the angle feature.
