MG PC Series - Alarm Output Setting

Setting 3.2 I/O channels
EM-7361 P22
MG CO., LTD.
www.mgco.jp
Alarm output setting
For each zone, specified DOs can be turned ON.

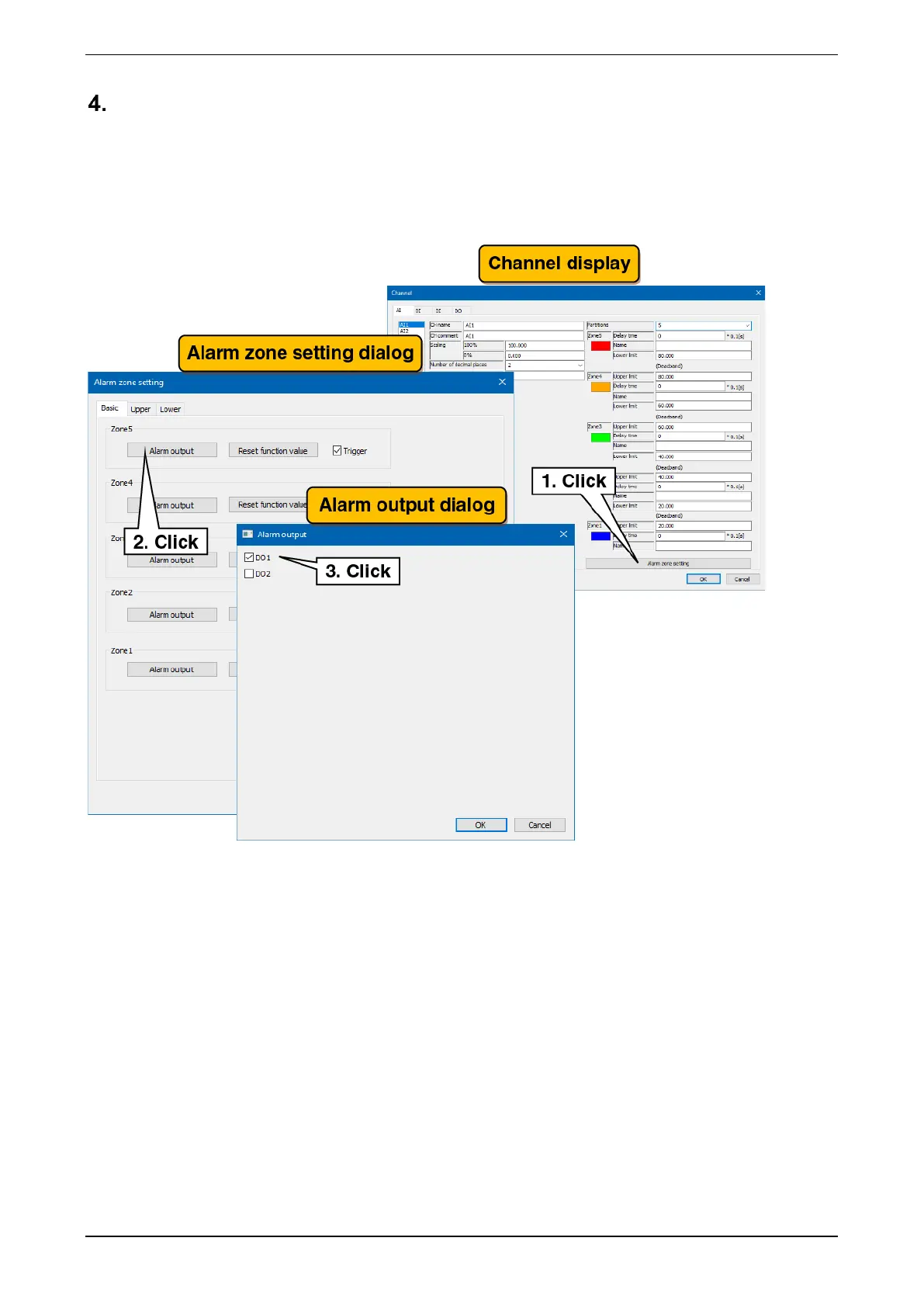

(1) Clicking the “Alarm zone setting” button on the “Channel” display shows the “Alarm zone setting” dialog.
Clicking the “Alarm output” button in the specified zone shows the “Alarm output” dialog.
(2) Select the checkboxes for the DO channels to be set and click the [OK] button.
