3.2.2 Digital input (DI) setting
Make the digital input (DI) setting. There are two digital input channels (DI1/DI2).
Basic setting
Make the basic setting for the digital input (DI).

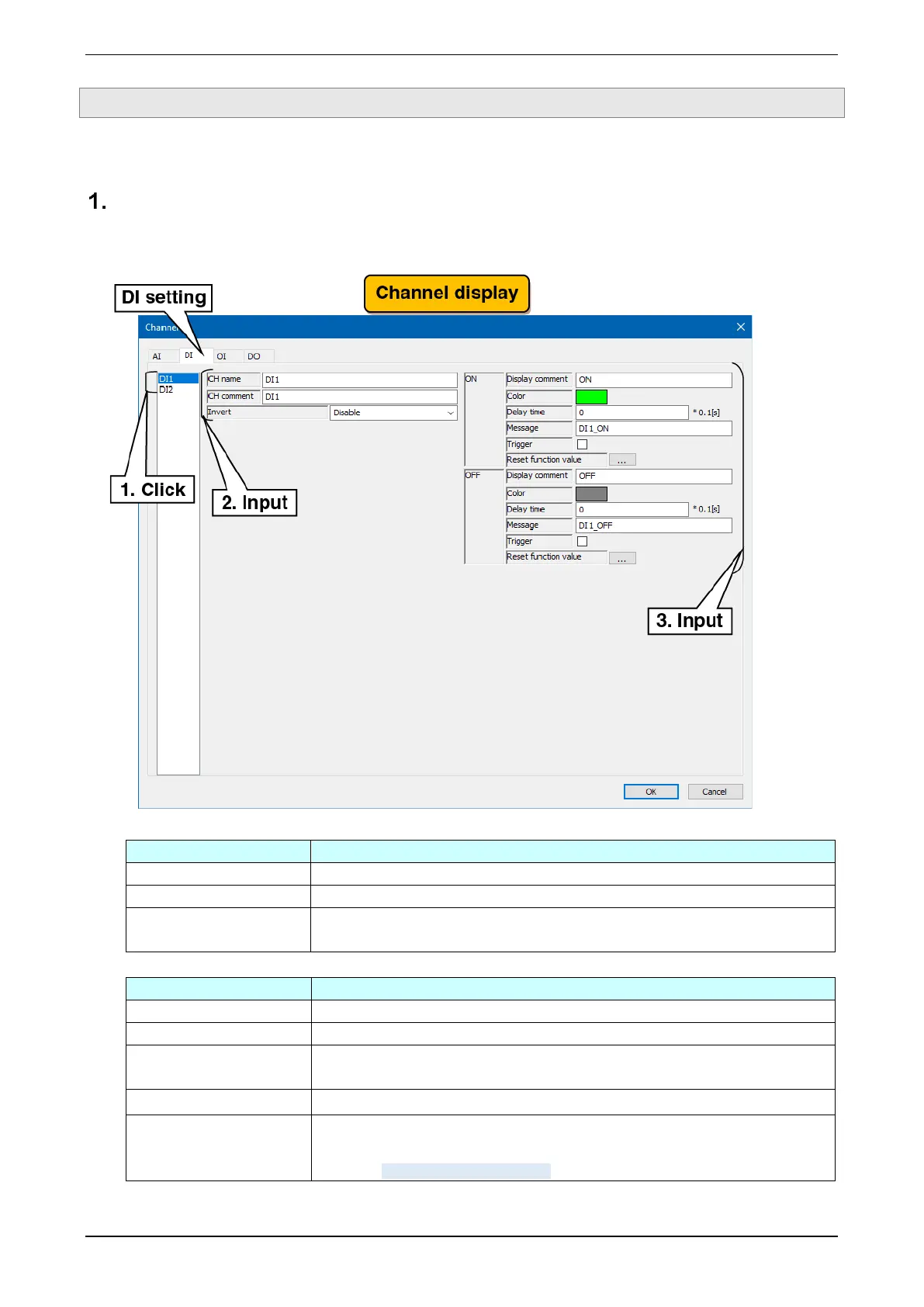

(1) Clicking the channel to be set shows the current setting.
(2) Make the basic setting.
Settings
Description
CH name
Set the name of the channel within 16 characters.
CH comment
Set the tag name or other comments about the channel within 16 characters.
Invert
If ON/OFF of the input signal and ON/OFF as an application signal are reversed,
select Enabled.
(3) Make the settings for each of ON and OFF.
Settings
Description
Display comment
Set the comment for each of ON and OFF. Set this within eight characters.
Color
Set a color to represent the status on the WEB display for each of ON and OFF.
Delay time
Set the delay time for each of ON and OFF.
(Setting range: 0.0 to 99.9 seconds)
Message
Set the message when the event occurs within 32 characters.
Trigger
Set whether or not to perform trigger recording when the input value changes and
enters the corresponding zone. Select the checkbox if you use the trigger
recording. -> 3.4.13. Trigger recording
