6. Adjustment
Adjust analog input channels 1 to 16.

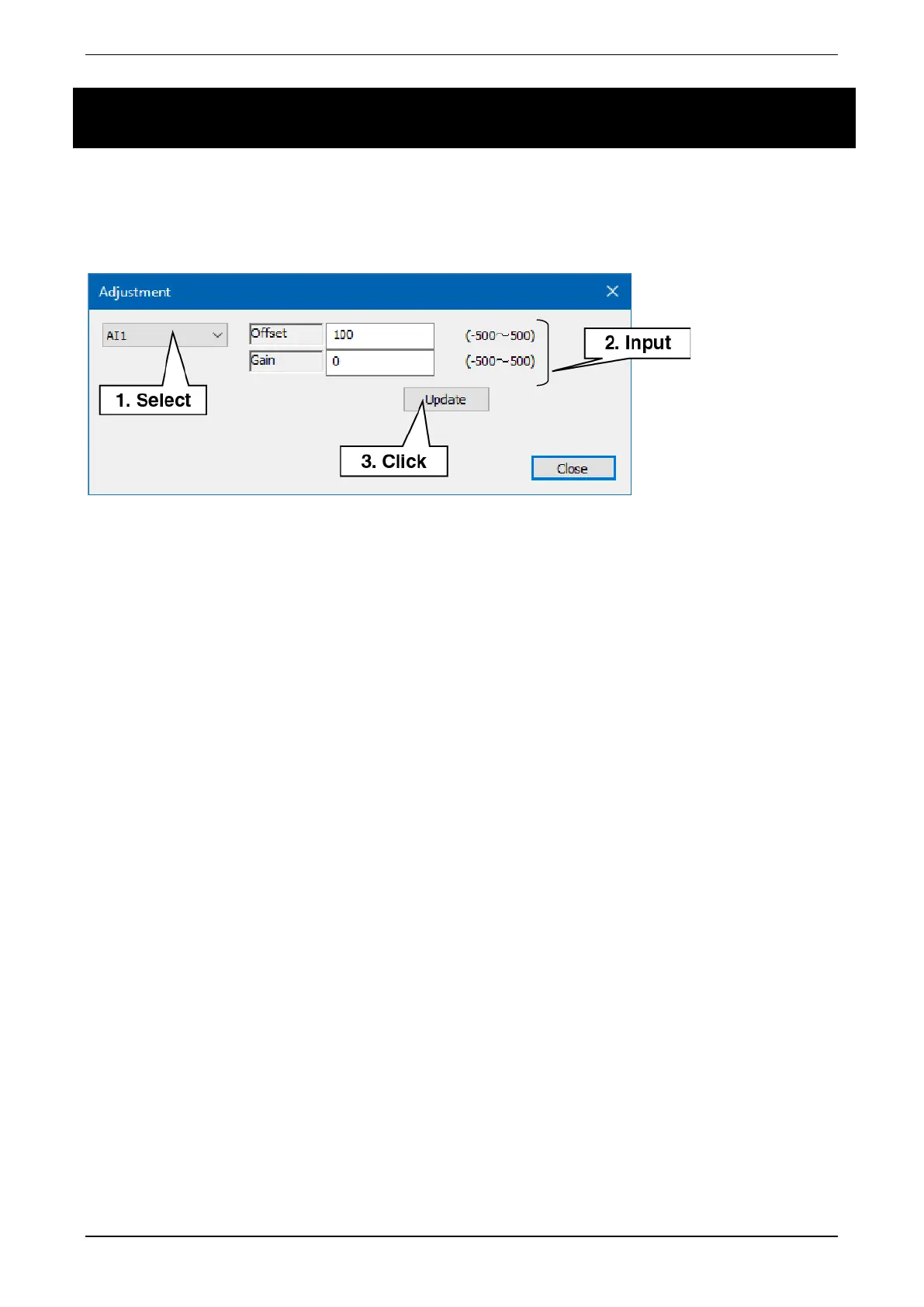

Right-click the “PC Recorder” icon in the task tray and click “Adjustment (D).” The Adjustment dialog is
displayed.
(1) Select the analog input channel to be adjusted.
(2) Enter Offset and Gain.
(3) Click the “Apply” button to apply the settings.
