Alarm output setting
For each zone, specified DOs can be turned ON.

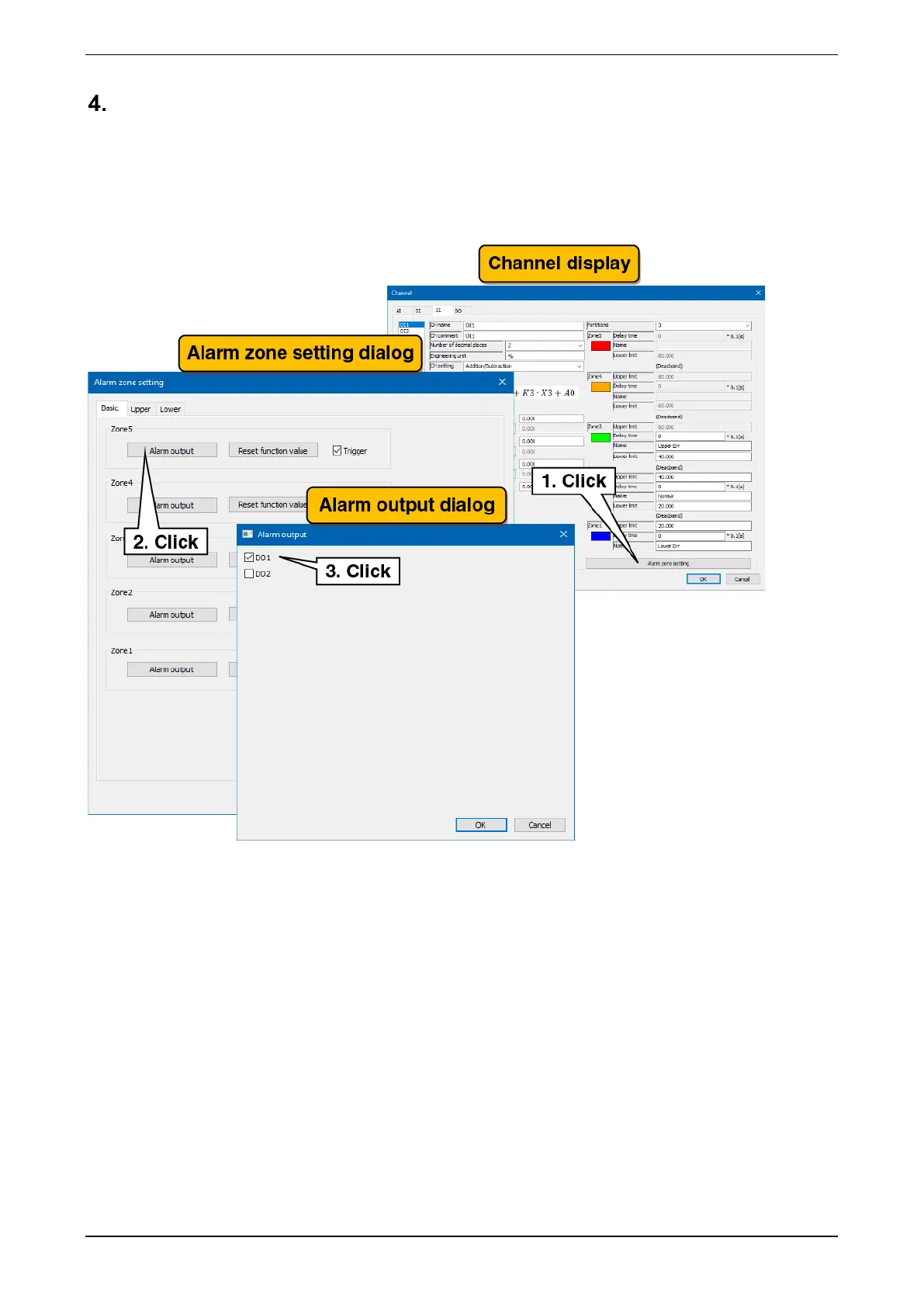

(1) Clicking the “Alarm zone setting” button on the “Channel” display show the “Alarm zone setting” dialog.
Clicking the “Alarm output” button in the specified zone show the “Alarm output” dialog.
(2) Select the checkboxes for the DO channels to be set and click the [OK] button.
